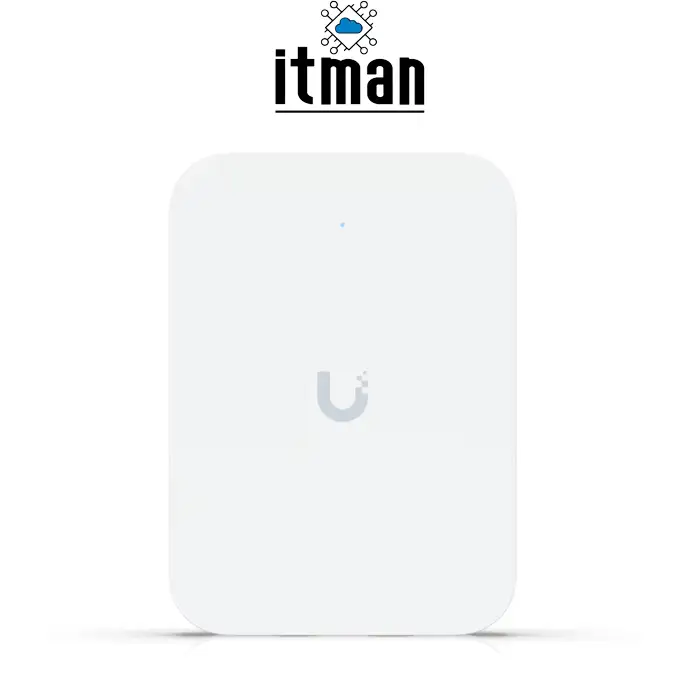

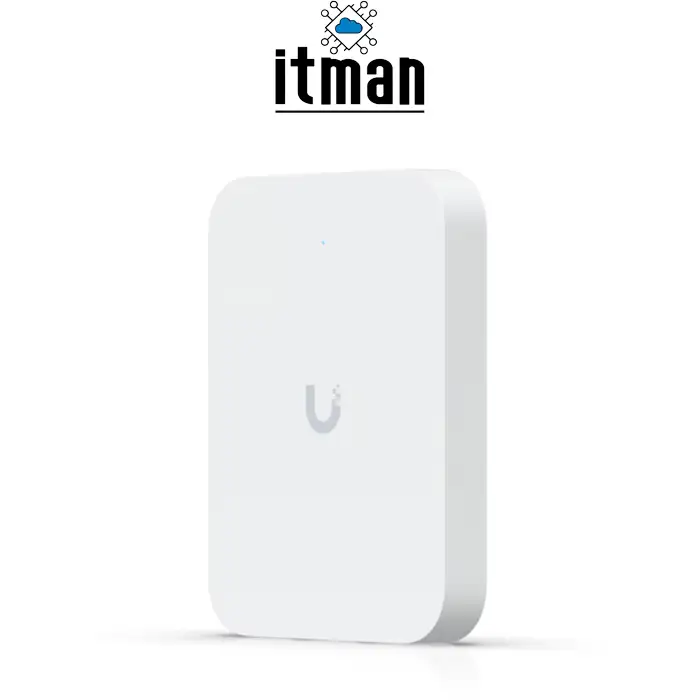

Ubiquiti U7 In-Wall Indoor UniFi U7-IW Access Point

The Ubiquiti U7 In-Wall is one of the newest innovations in UniFi’s Wi-Fi 7 lineup, designed specifically for installations where a clean, low-profile, and powerful wireless solution is needed. Unlike ceiling-mounted access points, the U7-IW is built to be installed flush into a standard wall outlet box, blending seamlessly with modern interiors. This Ubiquiti access point is perfect for homes, hotels, offices, and any environment where aesthetics and performance need to work hand in hand.

With Wi-Fi 7 (802.11be) technology, the Ubiquiti U7 In-Wall delivers blazing-fast multi-gigabit wireless speeds, ultra-low latency, and enhanced stability even in dense client environments. If you are upgrading from Wi-Fi 5 or Wi-Fi 6, the U7-IW is a major leap forward that will future-proof your network for years to come.

Comprehensive Overview of the Ubiquiti U7 In-Wall

The U7-IW is a dual-band 2×2 MIMO access point with support for the latest Wi-Fi 7 features such as Multi-Link Operation (MLO) and 320 MHz channel width (on supported devices). This means higher throughput, reduced interference, and a much smoother experience for multiple simultaneous users. It supports up to 2.5GbE uplink through its main Ethernet port, ensuring that wireless performance is never bottlenecked by wired infrastructure.

One of the standout features of the Ubiquiti U7 In-Wall is its integrated switch capability. Behind its sleek front faceplate are multiple gigabit Ethernet ports that can be used to connect wired devices such as IP phones, desktop computers, or IPTV set-top boxes. One of these ports even supports PoE passthrough, allowing you to power another device like a UniFi camera or VoIP phone directly from the AP. This makes it an excellent all-in-one solution for rooms where both wired and wireless connectivity are needed.

The Ubiquiti U7 In-Wall is fully managed by the UniFi Network Controller (available via UniFi OS Console or UniFi Cloud), giving you centralized control, analytics, guest portal configuration, and security settings. Its minimalistic design makes it perfect for hospitality deployments where multiple units need to be installed in hotel rooms, offering each guest their own dedicated, high-speed connection.

Real-World Applications of Ubiquiti U7 In-Wall

The Ubiquiti U7 In-Wall shines in environments where aesthetics and coverage are equally important. Typical applications include:

• Hotel and Hospitality Deployments – Install one U7-IW in every guest room to provide both Wi-Fi and wired connectivity without ugly external APs or messy cabling.
• Residential Smart Homes – Distribute multiple U7-IWs across your house to deliver seamless roaming and full-speed coverage in every room.
• Corporate Offices – Perfect for conference rooms, executive offices, and open workspaces where you want wall-mounted APs with additional wired ports.
• Student Dormitories or Apartments – Each unit can have its own U7-IW, isolating traffic and providing maximum performance for multiple tenants.

Because it supports VLAN tagging and multiple SSIDs, you can easily segment traffic between guests, staff, and IoT devices for better security and performance.

Ports and Connectivity of Ubiquiti U7 In-Wall

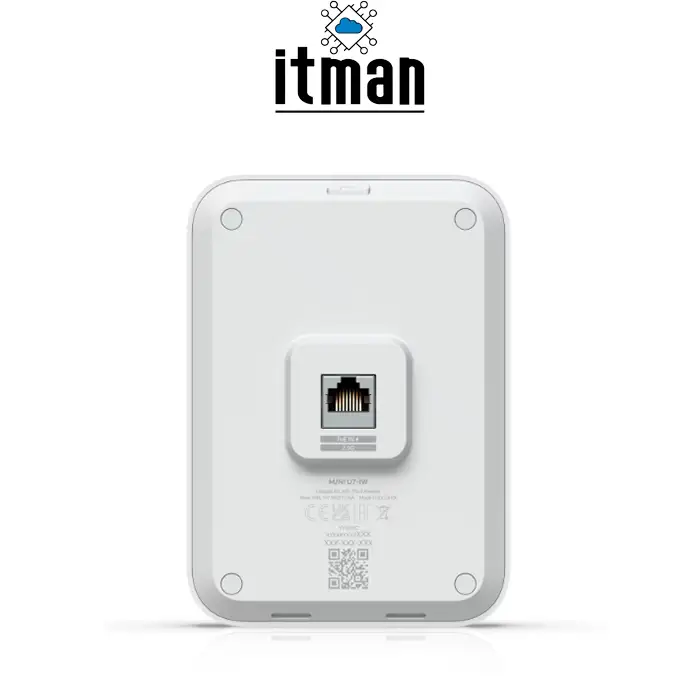

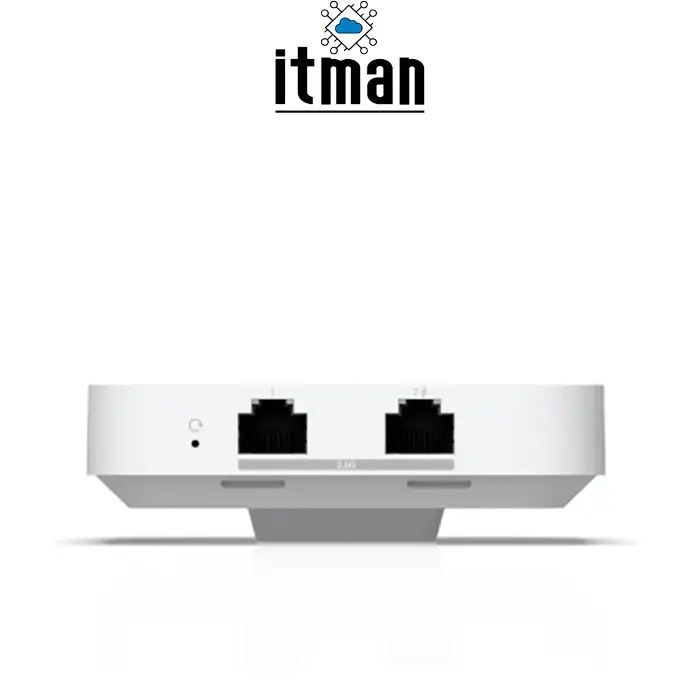

The U7-IW features a primary 2.5GbE uplink port that supports 802.3at PoE input. Additionally, it has three Gigabit Ethernet LAN ports on the bottom edge, allowing you to connect wired devices directly. One of these ports provides PoE passthrough (up to 15W) when powered by a PoE+ switch. This flexibility reduces the need for additional wall jacks and switches, simplifying deployments in rooms where multiple wired connections are required.

This port arrangement is one of the most useful aspects of the Ubiquiti U7 In-Wall, turning it into a mini-networking hub for the room where it is installed. Instead of installing a separate switch, you can rely on this built-in functionality.

Optimizing Wall Placement

When deploying Ubiquiti U7 In-Wall units, try to place them on central walls, ideally at chest height, and avoid locations behind large metal objects like refrigerators or filing cabinets. This ensures the Wi-Fi signal propagates evenly across the room and minimizes dead zones. Because this is a wall-mounted device, make sure to use proper in-wall Ethernet cabling (Cat6 or Cat6A recommended) to achieve full 2.5GbE performance.

Leveraging UniFi Controller Features

Take advantage of UniFi Controller’s RF Scan and Auto-Optimize features to ensure your U7-IW is using the best possible channel plan. Wi-Fi 7 APs can utilize wider channels (up to 320 MHz), but these can overlap in crowded RF environments. A well-planned channel layout can drastically improve performance and reduce co-channel interference.

Comparison with Similar UniFi Products

As you can see, the Ubiquiti U7 In-Wall is the most modern solution among UniFi’s in-wall lineup, bringing Wi-Fi 7 technology and 2.5GbE support while keeping a clean, professional form factor.

Technical Specifications Table

Frequently Asked Questions (FAQ)

1. What is the main advantage of the Ubiquiti U7 In-Wall compared to ceiling-mounted APs?
It provides a discreet, flush-mounted solution with integrated wired ports, making it perfect for guest rooms and offices.

2. Does the U7-IW support PoE passthrough?
Yes, one of its LAN ports can pass PoE to power another device if the AP is powered by a PoE+ switch.

3. Can I use the U7-IW with my existing UniFi Controller?
Yes, as long as you are running a recent version that supports Wi-Fi 7 devices.

4. How many users can connect simultaneously?
It can support dozens of concurrent clients without performance drops, thanks to Wi-Fi 7 efficiency features.

5. Does it work with VLANs and guest networks?
Yes, VLAN tagging, multiple SSIDs, and guest portal integration are fully supported.

6. Is the U7-IW suitable for outdoor use?
No, it is designed for indoor use only.

7. What cabling do I need?
Cat6 or higher is recommended to take full advantage of 2.5GbE uplink speeds.

8. Can it be powered by a regular PoE switch?
It requires 802.3at (PoE+) for full functionality, especially if using PoE passthrough.

9. Is the installation complicated?
Installation is simple if you have existing in-wall Ethernet. It mounts into a standard wall outlet box.

10. Is the Ubiquiti U7 In-Wall future-proof?
Yes, it supports Wi-Fi 7, which means it is ready for next-generation devices coming to market.

Conclusion

The Ubiquiti U7 In-Wall is one of the most elegant and powerful solutions for delivering Wi-Fi 7 connectivity in rooms where aesthetics and wired connectivity are just as important as wireless performance. With its combination of 2.5GbE uplink, multiple LAN ports, and UniFi’s easy-to-use management platform, it is a must-have for hospitality, residential, and enterprise installations that demand seamless connectivity. For ITMan customers looking to upgrade to the latest wireless standard without compromising interior design, the U7-IW is an excellent choice that will serve for many years.
