? Message us on In an increasingly connected world, delivering high-speed wireless access across large outdoor areas is more critical than ever. Whether you’re building a rural broadband network, deploying wireless infrastructure in campuses, or extending your WISP coverage, choosing the right antenna makes all the difference. The Ubiquiti Networks AMO-5G13 is designed exactly for these scenarios — offering wide 360-degree coverage, high gain, and seamless integration with Ubiquiti’s airMAX Rocket BaseStations.
This article explores the Ubiquiti AMO-5G13’s design, performance, installation, and real-world applications, and compares it with similar Ubiquiti antennas. If you’re looking to boost your wireless coverage with minimal interference and solid stability, keep reading to discover how this antenna can transform your network.
Reliable Long-Range Wireless Coverage with the Ubiquiti Networks AMO-5G13 Antenna
The Ubiquiti Networks AMO-5G13 is a robust, high-performance 5GHz omni-directional antenna engineered to deliver broad wireless coverage over a 360-degree field. With a 13 dBi gain, this antenna offers excellent signal strength while minimizing signal drop-offs at range. Specifically designed to pair with the Rocket M5 BaseStation, it allows operators to build powerful, scalable wireless networks with simple plug-and-play functionality.

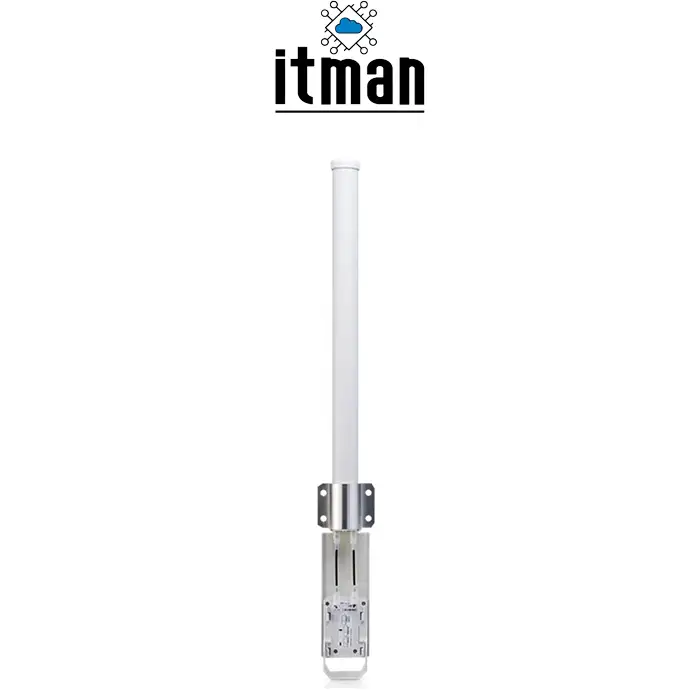

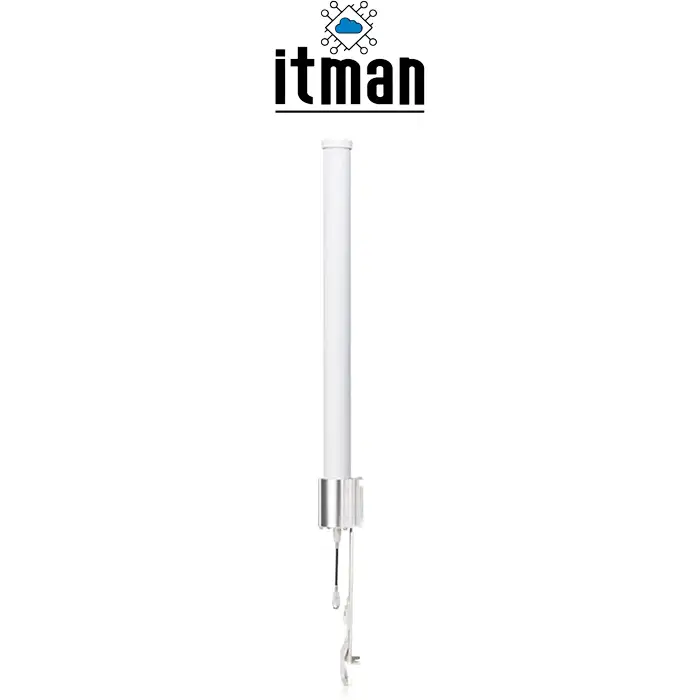

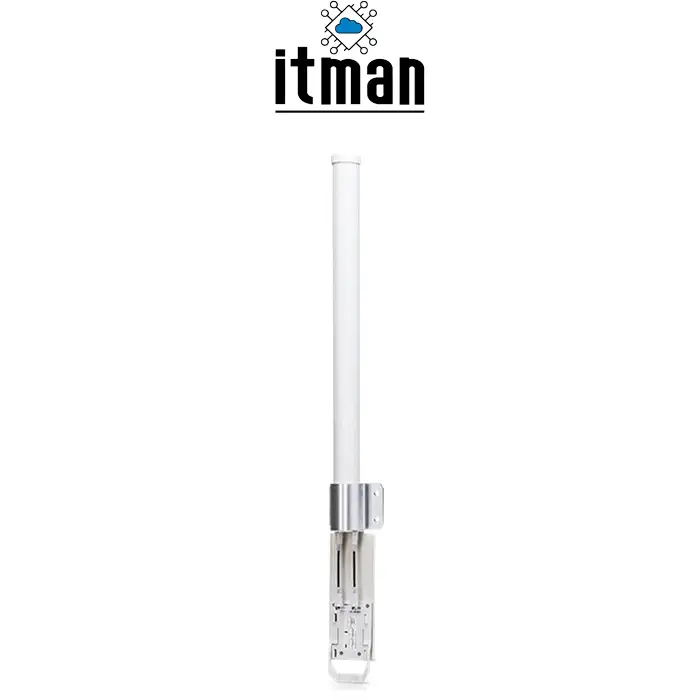

Operating in the 5.45 – 5.85 GHz frequency range, the AMO-5G13 is optimized for outdoor performance and interference rejection. Its rugged build quality ensures reliable operation in harsh weather environments, making it ideal for both urban and rural outdoor deployments. The device comes in a sleek white cylindrical form factor, mounting easily to masts or poles using the included hardware.
At ITMan, we proudly offer the AMO-5G13 as part of our portfolio of trusted Ubiquiti products, delivering guaranteed authenticity and UAE-based support for all enterprise and WISP customers.
In-Depth Product Breakdown
The AMO-5G13 model (part number AMO-5G13) is part of Ubiquiti’s airMAX series, which uses intelligent QoS, scalability features, and GPS synchronization in multipoint deployments. The antenna is specifically engineered to work with Rocket M5 radios, which can be mounted directly onto the unit using the integrated mounting system.
This antenna is a 2×2 MIMO (Multiple Input, Multiple Output) device, enabling simultaneous dual-chain communication — a feature that significantly boosts throughput and signal reliability compared to traditional single-chain omni antennas. Whether you’re covering open terrain, city blocks, or dense campus infrastructure, MIMO technology provides much better data integrity and signal efficiency.
Furthermore, it’s designed for carrier-class performance with 360-degree coverage, making it ideal for point-to-multipoint applications. Network architects can place a single AMO-5G13 at a strategic location and connect to multiple client stations around it without needing directional realignment.
Physically, the antenna measures approximately 885 mm in length, offering the optimal balance between size, gain, and ease of installation. The UV-stabilized white radome protects the internal components from exposure, while maintaining an unobtrusive aesthetic in both urban and rural deployments.
Where the AMO-5G13 Excels – Key Applications
The Ubiquiti Networks AMO-5G13 is ideal for:
- Wireless Internet Service Providers (WISPs): Extend 5 GHz coverage in hard-to-wire areas.
- Large Outdoor Venues: Offer full-circle coverage in campuses, parks, stadiums, or outdoor event locations.
- Remote Connectivity: Set up connectivity for oil fields, agricultural facilities, or construction zones.
- Multi-building campuses: Deliver a central signal to various buildings without complex directional antenna arrays.
Thanks to its wide coverage pattern and plug-and-play integration with Rocket M, the AMO-5G13 significantly simplifies multi-client network planning.
Ports and Connectivity
The AMO-5G13 itself is a passive antenna and does not include network or power ports. However, it’s built to directly interface with Rocket M5 BaseStations, which attach securely to the antenna bracket and connect via two RF cables (included).
Each RF connector is an RP-SMA female, designed to handle dual-polarized MIMO signals, ensuring low signal loss and high performance even at long distances. This simplicity in connection reduces installation errors and speeds up deployment.
Optimizing Performance with the AMO-5G13
- Elevate Strategically: Mount the AMO-5G13 as high as possible and in a central location to maximize 360° coverage. Even a few extra meters in elevation can significantly reduce interference and improve client performance.
- Align Rocket Firmware with AirMAX: Ensure your Rocket M5 is running the latest firmware and configured in airMAX mode. This allows you to benefit from GPS sync, smart QoS, and airTime fairness — critical for high-density environments.
Comparison with Similar Ubiquiti Antennas
| Model | Frequency | Gain | Coverage Pattern | Polarization | Compatible Devices | Use Case |
|---|---|---|---|---|---|---|
| AMO-5G13 | 5.45–5.85 GHz | 13 dBi | 360° Omni | 2×2 MIMO | Rocket M5 | Long-range omnidirectional coverage |
| AM-5G19-120 | 5.1–5.9 GHz | 19 dBi | 120° Sector | 2×2 MIMO | Rocket M5 | Directional sector deployments |
| AMO-2G10 | 2.4 GHz | 10 dBi | 360° Omni | 2×2 MIMO | Rocket M2 | Short-range 2.4 GHz coverage |
| AM-5AC21-60 | 5.1–5.9 GHz | 21 dBi | 60° Sector | 2×2 MIMO | Rocket 5ac | High-density, directional, high gain |
As seen in the table, AMO-5G13 is best suited for broad coverage, while sector antennas are better for focused, high-throughput applications in denser setups.
Technical Specifications – AMO-5G13
| Specification | Detail |
|---|---|
| Product Name | Ubiquiti Networks AMO-5G13 |
| Part Number | AMO-5G13 |
| Frequency Range | 5.45 – 5.85 GHz |
| Gain | 13 dBi |
| Antenna Type | Omni-directional |
| Polarization | Dual-Linear (2×2 MIMO) |
| Elevation Beamwidth | 7° |
| Azimuth Beamwidth | 360° |
| VSWR | < 2:1 |
| Max VSWR | 1.5:1 typical |
| Connector Type | 2 x RP-SMA Female |
| Dimensions | 885 x 38 mm |
| Weight | 1.1 kg |
| Wind Survivability | Up to 200 km/h |
| Mounting Kit | Included (mast/pole mount) |
| Operating Temperature | -40°C to +80°C |
| Compatible With | Rocket M5, airMAX radios |
Frequently Asked Questions (FAQ)
What is the range of the Ubiquiti Networks AMO-5G13?
It varies based on elevation and environment, but typically supports 5–10 km coverage.
Is the AMO-5G13 weatherproof?
Yes, it’s rated for outdoor use with UV-resistant housing.
Can I use it without a Rocket M5?
No, it must be paired with a compatible Rocket device for wireless transmission.
Is it compatible with 802.11ac radios?
It’s primarily designed for Rocket M (802.11n), but mechanical compatibility with other 5 GHz radios is possible.
What mounting options are available?
The antenna includes a universal pole mount.
Can it be used in urban environments?
Yes, but optimal in less RF-noisy settings due to its omni-directional nature.
Does it include surge protection?
No, surge protection should be added separately.
What’s the maximum throughput I can expect?
Throughput depends on the Rocket device used and client signal quality.
What’s the difference between AMO-5G13 and AM-5G19-120?
AMO-5G13 offers 360° coverage at 13 dBi, while AM-5G19-120 is directional with higher gain.
Final Thoughts: Why Choose the AMO-5G13?
The Ubiquiti Networks AMO-5G13 is a smart investment for anyone looking to deploy a robust, centralized wireless solution over a wide area. With excellent build quality, high-gain performance, and seamless Rocket M5 integration, it simplifies deployments without compromising performance.
For organizations seeking dependable long-range coverage in outdoor environments, this antenna stands out as a reliable backbone. It’s available now at ITMan.ae, with full technical support and competitive pricing across the UAE.
