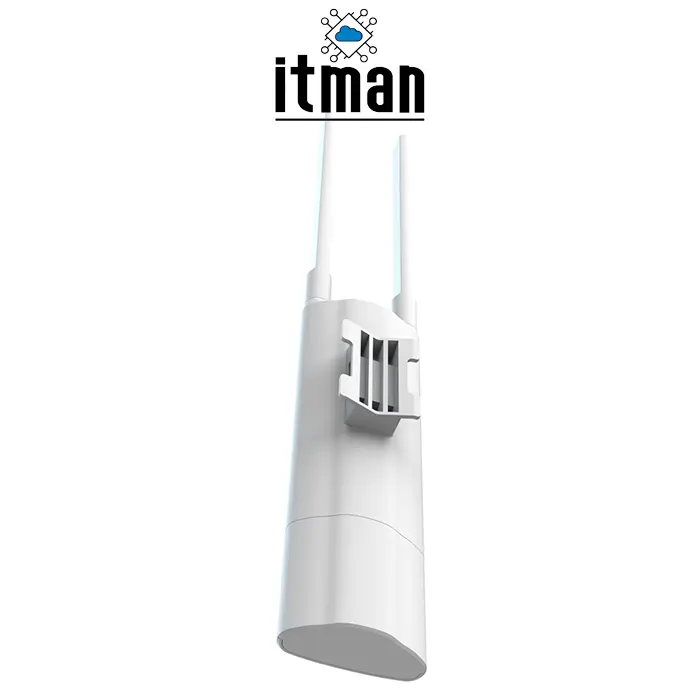

RG-RAP52-OD Ruijie Reyee Outdoor Access Point Wi-Fi 5 AC1300 Dual-Band

Providing reliable Wi-Fi in outdoor environments is always more challenging than indoor coverage. Heat, dust, humidity, rain, and long distances can quickly expose the limits of regular indoor access points. The Ruijie Reyee RG-RAP52-OD Outdoor Access Point is designed specifically to solve these challenges by offering stable dual-band wireless performance in open areas while keeping deployment simple and cost-effective. This model targets users who need dependable outdoor Wi-Fi without unnecessary complexity or premium pricing.

Ruijie Reyee RG-RAP52-OD Outdoor Access Point Overview

The Ruijie Reyee RG-RAP52-OD Outdoor Access Point is a Wi-Fi 5 (802.11ac Wave 2) dual-band outdoor access point in the AC1300 performance class. It delivers a combined wireless throughput of up to 1266 Mbps, using both 2.4 GHz and 5 GHz bands. The device features a weather-resistant enclosure, supports PoE power, and is built for wall or pole mounting, making it suitable for a wide range of outdoor networking scenarios.

Wireless Performance and Wi-Fi 5 Capabilities

• Dual-Band AC1300 Architecture: The Ruijie Reyee RG-RAP52-OD Outdoor Access Point operates simultaneously on 2.4 GHz and 5 GHz bands. The 2.4 GHz band provides wider coverage and better penetration through obstacles, while the 5 GHz band delivers higher data rates and reduced interference. With 2×2 MIMO on each band, the access point balances coverage and speed effectively for outdoor use.
• Practical Throughput for Outdoor Environments: In outdoor deployments, raw speed is less important than consistency and stability. The AC1300 class allows this access point to handle everyday outdoor traffic such as web browsing, cloud applications, IP cameras monitoring, mobile POS terminals, and guest Wi-Fi access without congestion or sudden drops in performance.

Design and Outdoor Durability

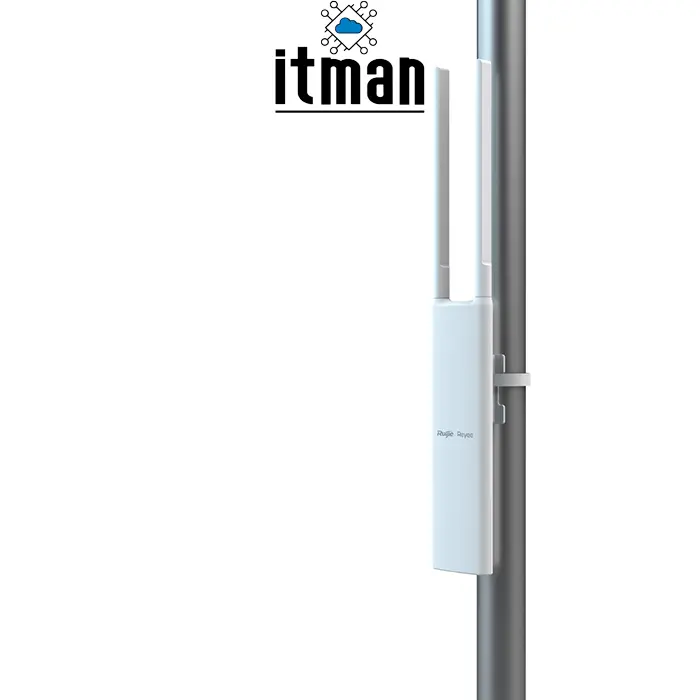

• IP65 Weather Protection: The Ruijie Reyee RG-RAP52-OD Outdoor Access Point is built with an IP65-rated enclosure. This means it is protected against dust ingress and can withstand water splashes and rain, making it suitable for permanent outdoor installation in most climates. It is well-suited for installation on building exteriors, fences, poles, or warehouse walls.
• Compact and Discreet Form Factor: Despite being an outdoor device, the RG-RAP52-OD remains compact and visually clean. This makes it suitable for environments where appearance matters, such as cafés, hotels, villas, and commercial storefronts, without drawing unnecessary attention.

Antenna Design and Coverage Control

• External Omni-Directional Antennas: The Ruijie Reyee RG-RAP52-OD Outdoor Access Point uses external omni-directional antennas to provide balanced coverage around the installation point. External antennas offer flexibility during deployment and allow installers to optimize orientation for better signal distribution across open spaces.
• Coverage Optimization in Real Installations: Outdoor Wi-Fi coverage is influenced by height, surrounding structures, and reflective surfaces. The antenna design of this access point allows installers to fine-tune placement and minimize shadow zones caused by walls, metal structures, or vehicles.

Power Options and Energy Efficiency

• PoE Support for Flexible Deployment: The Ruijie Reyee RG-RAP52-OD Outdoor Access Point supports Power over Ethernet, allowing both data and power to be delivered through a single Ethernet cable. This simplifies installation in outdoor areas where power outlets may not be easily accessible.
• Low Power Consumption: With relatively low power requirements, the RG-RAP52-OD works well with standard PoE switches and injectors. This makes it suitable for small to medium deployments where power budget and heat generation must be carefully managed.

Client Capacity and Network Stability

• Designed for Moderate Client Density: The RG-RAP52-OD is optimized for environments with moderate user density. It comfortably supports dozens of active clients, making it ideal for outdoor seating areas, villa gardens, loading zones, and small public spaces.
• Stable Connections Over Long Periods: Rather than focusing on peak theoretical performance, the Ruijie Reyee RG-RAP52-OD Outdoor Access Point emphasizes long-term stability. Clients remain connected reliably even during extended usage periods, which is critical for business operations.

Key Benefits of Ruijie Reyee RG-RAP52-OD Outdoor Access Point

• Cost-Effective Outdoor Wi-Fi Solution: For many projects, Wi-Fi 5 remains the most cost-efficient choice. This model avoids unnecessary expense while still delivering dependable performance for most outdoor applications.
• Simple Installation and Maintenance: The mounting options, PoE support, and intuitive configuration approach make installation straightforward. Once deployed, the device requires minimal maintenance.
• Reliable Performance in Harsh Conditions: The outdoor-rated enclosure and stable wireless design ensure consistent performance despite environmental challenges.

Common Application Scenarios

• Villas and Residential Outdoor Areas: The RG-RAP52-OD is ideal for covering gardens, swimming pools, outdoor lounges, and guest houses where indoor Wi-Fi cannot reach effectively.
• Cafés, Restaurants, and Outdoor Seating: Businesses with outdoor seating can provide customers with stable Wi-Fi while also supporting staff devices such as tablets and POS systems.
• Warehouses and Industrial Yards: It supports handheld scanners, mobile terminals, and staff devices in loading docks and outdoor storage areas.
• Retail Entrances and Storefronts: Stores can extend Wi-Fi coverage to entrances and external displays without relying on indoor signal leakage.

Outdoor Installation Best Practices

• Choose the Right Mounting Height: Mounting the access point above head level helps avoid signal blockage from people, furniture, and vehicles. Higher placement generally results in more uniform coverage.
• Avoid Metal Surfaces: Metal walls, fences, and roofs can reflect or absorb wireless signals. Maintain distance from large metal objects whenever possible.
• Use Outdoor-Rated Cabling: Outdoor Ethernet cables and proper sealing prevent moisture ingress and cable degradation over time.
• Plan Coverage Before Final Installation: Temporary placement and basic signal testing help identify dead zones and optimize final positioning.

Optimizing Outdoor Wi-Fi Performance

• Balance Transmit Power: Using maximum transmit power can increase interference and reduce roaming quality. Moderate power levels often provide better real-world results.
• Channel Planning Matters: Select channels carefully to avoid interference from neighboring networks, especially in dense urban environments.
• Limit the Number of SSIDs: Fewer SSIDs reduce overhead and improve overall network efficiency. A primary SSID and a guest SSID are usually sufficient.
• Separate Traffic When Possible: Separating guest traffic from operational devices improves performance and security.

Comparison with Other Ruijie Reyee Outdoor Access Points

Technical Specifications of Ruijie Reyee RG-RAP52-OD Outdoor Access Point

Frequently Asked Questions (FAQ)

1. Is Ruijie Reyee RG-RAP52-OD Outdoor Access Point suitable for direct rain exposure?
   Yes, its IP65 rating allows it to operate reliably in rainy outdoor conditions.
2. Can this access point be used indoors?
   Yes, but it is specifically optimized for outdoor use.
3. Is Wi-Fi 5 still relevant for outdoor networks?
   Yes, Wi-Fi 5 remains highly effective for most outdoor applications.
4. Does it support guest Wi-Fi networks?
   Yes, it can broadcast multiple SSIDs for different user groups.
5. Can it be powered by a standard PoE switch?
   Yes, standard PoE power is supported.
6. How many users can connect simultaneously?
   It supports moderate client density suitable for small to medium outdoor areas.
7. Is this model suitable for industrial environments?
   It works well in light industrial environments but is not designed for extreme conditions like chemical exposure.
8. Does antenna orientation affect performance?
   Yes, proper antenna positioning significantly improves coverage.
9. Can it handle video streaming outdoors?
   Yes, it supports stable video streaming under normal outdoor usage.
10. Is this access point good for long-term deployment?
    Yes, it is designed for continuous outdoor operation.

Conclusion

The Ruijie Reyee RG-RAP52-OD Outdoor Access Point is a practical and well-balanced solution for extending reliable Wi-Fi into outdoor environments where indoor access points fall short. By combining Wi-Fi 5 AC1300 performance, dual-band operation, and a weather-resistant IP65 design, it delivers stable connectivity without unnecessary cost or complexity.

This model is especially well suited for villas, cafés, retail outdoor areas, warehouses, and small commercial spaces that require consistent coverage rather than cutting-edge wireless standards. Its PoE power support, flexible wall and pole mounting options, and efficient power consumption make deployment straightforward and cost-effective.

Overall, the Ruijie Reyee RG-RAP52-OD Outdoor Access Point stands out as a dependable outdoor Wi-Fi choice for projects that prioritize stability, durability, and real-world performance. It offers everything needed for long-term outdoor operation while keeping installation and maintenance simple, making it a smart option for many outdoor networking scenarios.
