? Message us on As networking needs continue to evolve, businesses and smart homes require faster, more stable, and highly scalable WiFi solutions. That’s where Ubiquiti’s latest innovation, the UniFi U6 Mesh Pro, steps in. Designed for top-tier performance and coverage, this Tri-Band WiFi 6 access point brings exceptional speed and reliability to any wireless environment. Whether you’re supporting a fleet of users in a busy office or blanketing a smart building with seamless connectivity, the UniFi U6 Mesh Pro is engineered to perform under pressure.
We offer this Ubiquiti access point for professionals and enthusiasts who refuse to compromise on speed, range, or enterprise-level performance. With a sleek design and cutting-edge specs like Tri-Band WiFi 6 and a blazing 6.3Gbps throughput, this device is a future-ready solution for dense wireless environments.

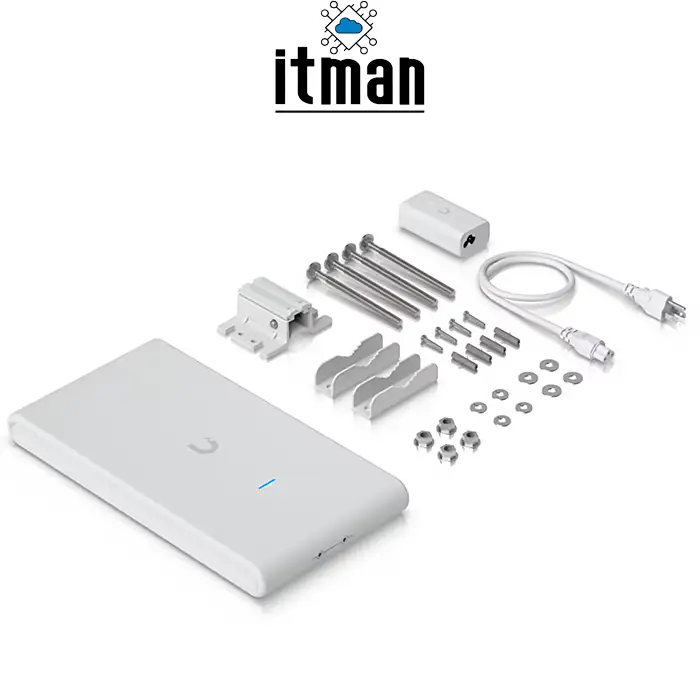

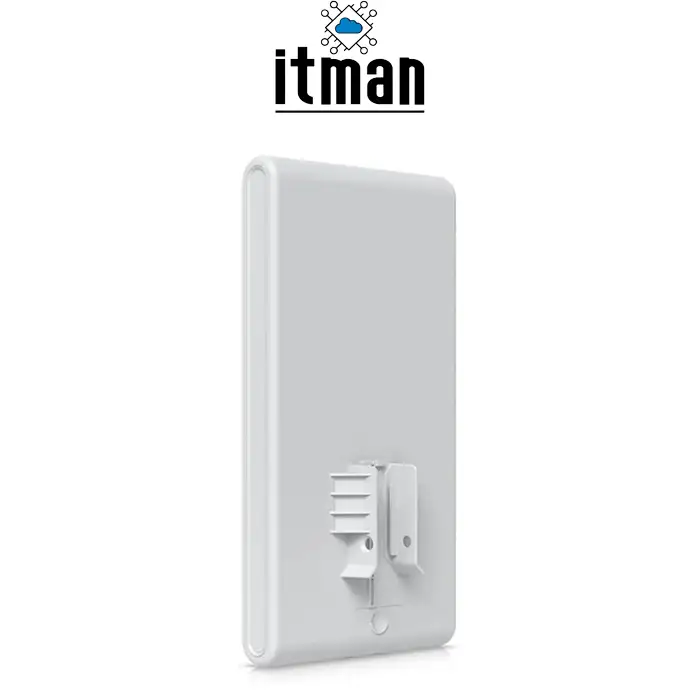

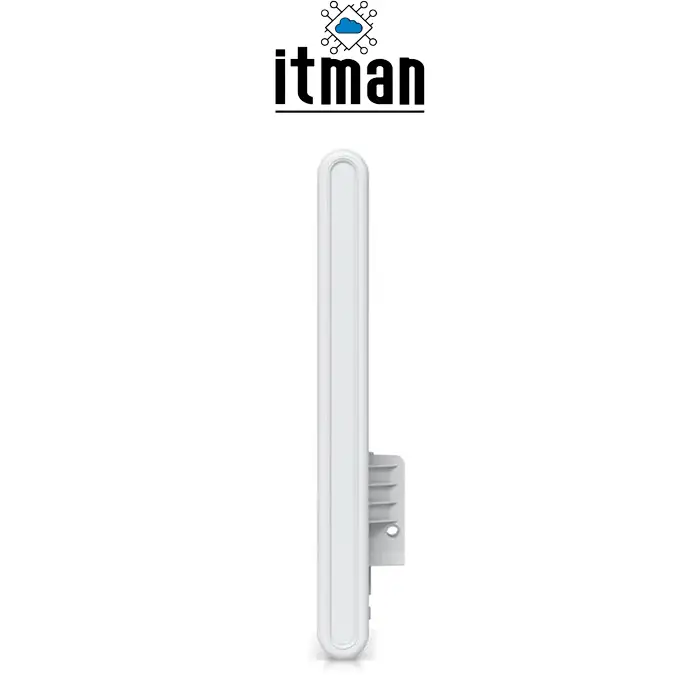

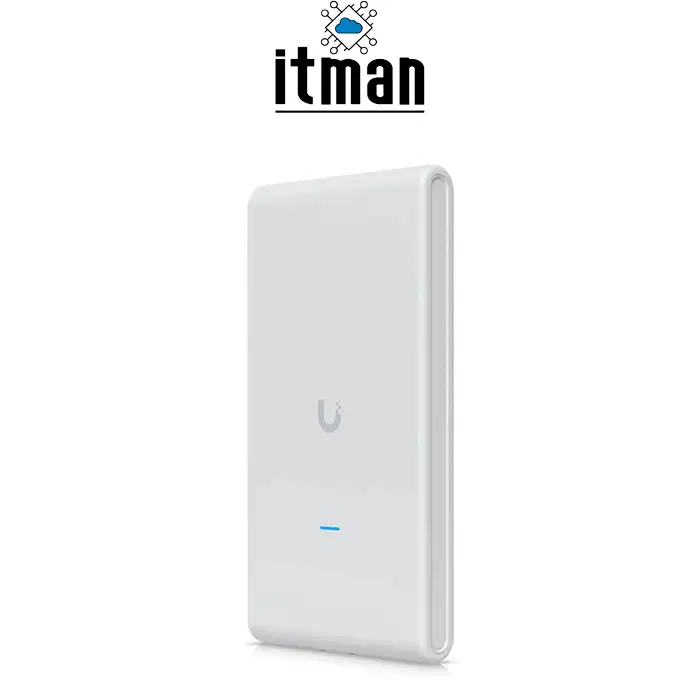

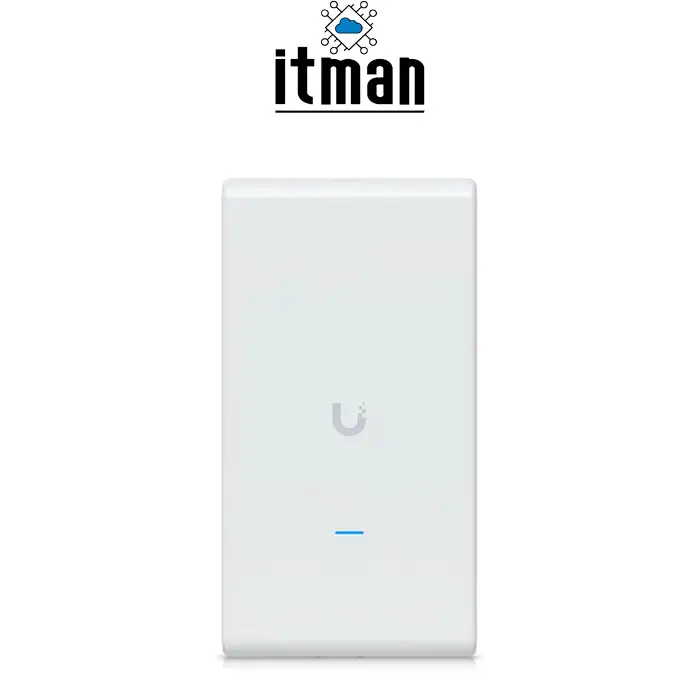

Ubiquiti UniFi U6 Mesh Pro – Tri-Band WiFi 6 Access Point with 6.3Gbps Speed & 2.5GbE PoE
The Ubiquiti UniFi U6 Mesh Pro (part number: U6-Mesh-Pro) is the flagship mesh access point from Ubiquiti’s UniFi line, specifically built for seamless indoor and outdoor wireless deployments. It’s equipped with three dedicated radios that operate across the 2.4 GHz and dual 5 GHz bands, enabling better client distribution and optimal traffic management.
Unlike basic mesh systems, the UniFi U6 Mesh Pro utilizes 4×4 MU-MIMO and OFDMA technologies on all bands, allowing dozens of clients to connect simultaneously without bottlenecks. With a maximum wireless throughput of 6.3Gbps, it delivers exceptional speeds even in ultra-congested network setups.
One of its key strengths lies in its weather-resistant design, making it suitable for both indoor ceilings and outdoor walls or poles. It’s powered via 802.3at PoE, ensuring simple and clean installations without needing separate power supplies. The integrated Bluetooth LE radio also allows for streamlined setup and monitoring via the UniFi Network Controller.
For businesses, universities, co-working spaces, or luxury smart homes that demand unwavering wireless performance, the UniFi U6 Mesh Pro checks all the boxes. It doesn’t just offer performance; it provides peace of mind with proven reliability and unified management through UniFi’s robust ecosystem.
Key Applications of the UniFi U6 Mesh Pro
The UniFi U6 Mesh Pro is engineered for versatility. It works excellently in high-density areas such as:
Office buildings with multiple floors and users
Campus-wide wireless networks
Cafés, restaurants, and co-working hubs
Indoor malls and shopping centers
Large homes with smart devices across zones
Outdoor event spaces and courtyards
Its IPX5 weather resistance allows for stable operation under rain and high humidity, making it suitable for both wall and pole mounting outdoors.
Port Configuration and Power Options
This model features a single, high-speed 2.5GbE RJ45 port with 802.3at PoE support. This means it can be powered directly via a compatible PoE+ switch or injector, eliminating cable clutter and simplifying deployment. The 2.5Gbps uplink ensures that the device can fully utilize its Tri-Band wireless speeds without being bottlenecked by a typical 1GbE port.
There are no additional LAN ports, as the device is designed as a mesh access point to be integrated into a larger UniFi-managed network.
Why the UniFi U6 Mesh Pro is Ideal for Dense Networks
When WiFi congestion becomes a problem—think open-plan offices or lecture halls—the UniFi U6 Mesh Pro offers an intelligent solution. The Tri-Band architecture allocates one 5 GHz band for backhaul traffic while the others handle client devices. This keeps performance stable even as more devices come online.
The 4×4 MU-MIMO antennas ensure that multiple clients can connect without compromising speed or latency. Whether it’s video conferencing, streaming, or downloading, performance remains smooth.
Simple UniFi Controller Integration for Scalable Deployments
Ubiquiti’s UniFi Network Controller is where this product truly shines. Through a single dashboard, you can manage not just the U6 Mesh Pro but an entire fleet of UniFi devices—switches, gateways, and access points. You can create SSIDs, segment traffic using VLANs, enable guest networks, enforce firewall rules, and even monitor real-time bandwidth per user.
The centralized interface simplifies what traditionally required hours of configuration, making it a powerful choice for managed service providers and IT admins.
UniFi U6 Mesh Pro vs Similar Ubiquiti Models
Here’s how the U6 Mesh Pro compares to other popular UniFi access points:
| Feature | UniFi U6 Mesh Pro | UniFi U6 LR | UniFi U6+ | UniFi U6 Mesh |
|---|---|---|---|---|
| WiFi Standard | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) |
| Bands | Tri-Band | Dual-Band | Dual-Band | Dual-Band |
| Max Throughput | 6.3Gbps | 3.0Gbps | 2.4Gbps | 1.5Gbps |
| Ethernet Port | 1 x 2.5GbE | 1 x 1GbE | 1 x 1GbE | 1 x 1GbE |
| Outdoor Capable | Yes (IPX5) | No | No | Yes (limited) |
| Mount Options | Wall/Pole | Ceiling | Ceiling | Wall/Pole |
Technical Specifications of UniFi U6 Mesh Pro
| Specification | Details |
|---|---|
| Part Number | U6-Mesh-Pro |
| Wireless Standard | WiFi 6 (802.11ax) |
| Bands | Tri-Band: 2.4GHz + 2x 5GHz |
| Max Data Rate | 6.3Gbps |
| MIMO | 4×4 MU-MIMO |
| OFDMA | Supported |
| Bluetooth LE | Yes |
| PoE Standard | 802.3at PoE+ |
| Ethernet Port | 1x 2.5GbE RJ45 |
| Weather Resistance | IPX5 (Indoor/Outdoor Rated) |
| Mounting Options | Wall/Pole Mount |
| Management | UniFi Network Controller |
| Power Consumption | Max. 21.5W |
| Dimensions | 190 x 190 x 40 mm |
| Weight | 460g |
Frequently Asked Questions (FAQ)
1. Is the UniFi U6 Mesh Pro suitable for outdoor use?
Yes, it has an IPX5 rating, which makes it resistant to rain and suitable for covered outdoor installations.
2. Can I power this device using a regular PoE switch?
You need a switch or injector that supports 802.3at PoE+ for optimal operation.
3. Does it support VLANs and guest networks?
Yes, you can configure VLANs, SSIDs, and guest portals through the UniFi Controller.
4. How many devices can connect at once?
It supports over 300 concurrent connections, thanks to its 4×4 MU-MIMO and OFDMA technology.
5. Is this device backward compatible with WiFi 5 and 4 devices?
Yes, it supports legacy clients as well.
6. Can I use it as a standalone access point?
It’s designed to be managed via the UniFi Controller, so it’s best used within the UniFi ecosystem.
7. How far is the coverage range?
While exact range varies, in open environments it can cover up to 185 meters effectively.
8. Does it come with a power injector?
No, PoE injector is sold separately.
9. Can this device mesh with other UniFi models?
Yes, it fully supports wireless uplinks with other UniFi APs for mesh networking.
Final Thoughts: Is the UniFi U6 Mesh Pro Worth It?
The UniFi U6 Mesh Pro is Ubiquiti’s answer to high-performance mesh networking in both indoor and outdoor environments. From its Tri-Band setup to the 2.5GbE uplink, this model is all about future-proofing your network. Businesses and demanding home users alike will appreciate the combination of raw speed, smart traffic handling, and elegant design.
If you’re looking for a mesh access point that delivers reliable performance with UniFi’s signature manageability, the UniFi U6 Mesh Pro is a top-tier choice.
