In modern enterprise networks, performance, scalability, and smart power management are key factors when choosing network equipment. The Ubiquiti USW-Pro-24-PoE Switch offers a compelling solution, delivering robust Layer 2 and Layer 3 switching, intelligent PoE+ power delivery, and seamless integration with the UniFi ecosystem. Whether you’re powering access points, IP cameras, or VoIP phones, this switch is designed to simplify deployment and maximize uptime.
Ubiquiti USW-Pro-24-PoE Switch: A Powerful and Versatile Enterprise Solution
The Ubiquiti USW-Pro-24-PoE Switch is a 24-port managed Layer 3 switch that blends high-performance switching capabilities with advanced power delivery, ideal for expanding enterprise networks. Equipped with a total power budget of 400W and a mix of 802.3af/at PoE+ and 802.3bt ports, it provides efficient power to a wide range of UniFi devices. This model includes two 10G SFP+ uplink ports, ensuring high-speed fiber backbone connectivity and future scalability.
Designed for silent operation with a fanless cooling system and offering a bright 1.3-inch LCM touchscreen for real-time network status, it’s engineered for professional environments that demand both performance and aesthetics. The switch also supports Layer 3 features like static routing and inter-VLAN routing, making it suitable for complex, segmented networks.
Its seamless integration with the UniFi Network Controller allows administrators to manage PoE settings, monitor port activity, and configure VLANs through an intuitive web interface or mobile app. The Ubiquiti USW-Pro-24-PoE Switch combines the convenience of software-defined networking with hardware that performs in any enterprise setting.
Designed for Versatility: Use Cases of Ubiquiti USW-Pro-24-PoE Switch
This switch fits effortlessly in a variety of deployment scenarios:
- Powering UniFi Access Points across floors in office buildings
- Running IP cameras for surveillance systems with extended uptime
- Delivering connectivity and PoE to VoIP systems in call centers
- Managing segmented VLANs in educational institutions or hotels
- Supporting smart building infrastructure like PoE lighting and automation
Thanks to its advanced PoE+ and PoE++ capabilities, the USW-Pro-24-PoE is not limited to traditional access layer roles—it thrives in hybrid environments where power and data go hand-in-hand.

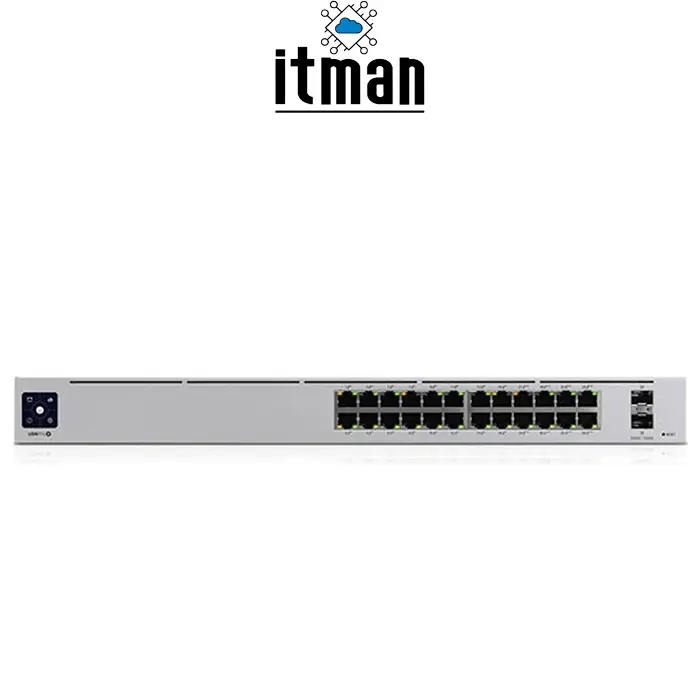

Port Layout and Connectivity
The Ubiquiti USW-Pro-24-PoE Switch includes the following port configuration:
24 x Gigabit Ethernet Ports
- 16 x 802.3at/af PoE+ ports (each up to 30W)
- 8 x 802.3bt PoE++ ports (each up to 60W)
2 x 10G SFP+ Uplink Ports for high-speed fiber connections
The combination allows flexible deployment strategies, such as aggregating wireless access points through fiber uplinks while powering edge devices like security cameras and access control panels.
Build Quality and Professional Design
From the anodized aluminum chassis to the silent fanless design, the Ubiquiti USW-Pro-24-PoE Switch reflects attention to detail and build quality. It features:
- Durable metal housing ideal for rackmount environments
- Touchscreen LCD display showing port status, throughput, and alerts
- Low noise footprint – perfect for noise-sensitive settings
- Reliable thermal design that ensures longevity without active cooling
Whether placed in a server rack or wall-mounted in a network cabinet, this switch is built to last and look professional.
Maximize PoE Efficiency with Power Priority
When using the Ubiquiti USW-Pro-24-PoE Switch in a power-constrained environment, you can assign priority to critical ports. This ensures your essential devices like VoIP phones or access points continue operating during peak consumption or power draw limitations.
Use VLANs to Segment Office and Surveillance Networks
Using the UniFi Network Controller, set up VLANs to logically separate your office PCs, IP cameras, and guest Wi-Fi. This improves security, traffic efficiency, and simplifies troubleshooting across departments.
Comparison with Similar Ubiquiti Switches
Model | Ports | PoE Type | Power Budget | Uplinks | Layer 3 Support | Fanless |
---|---|---|---|---|---|---|
USW-Pro-24-PoE | 24 GbE (16 PoE+ / 8 PoE++) | PoE+ / PoE++ | 400W | 2 x 10G SFP+ | Yes | Yes |
USW-24-PoE | 24 GbE (16 PoE+) | PoE+ | 200W | 2 x 1G SFP | No | Yes |
USW-Pro-48-PoE | 48 GbE (32 PoE+ / 16 PoE++) | PoE+ / PoE++ | 600W | 4 x 10G SFP+ | Yes | No |
USW-Enterprise-24-PoE | 24 GbE (all PoE++) | PoE++ only | 400W | 2 x 10G SFP+ | Yes | Yes |
This shows the USW-Pro-24-PoE Switch is a well-balanced solution, combining silent operation with robust power options and Layer 3 capabilities.
Technical Specifications: Ubiquiti USW-Pro-24-PoE Switch
Specification | Details |
---|---|
Ethernet Ports | 24 x Gigabit Ethernet |
PoE Ports | 16 x PoE+ (802.3af/at), 8 x PoE++ (802.3bt) |
SFP+ Ports | 2 x 10G SFP+ uplink |
Switching Capacity | 88 Gbps |
Forwarding Rate | 65.472 Mpps |
Power Budget | 400W total PoE |
Touchscreen | 1.3″ color LCM display |
Rackmountable | Yes (1U height) |
Cooling | Fanless design |
Operating Temp | -5°C to 40°C |
Management | UniFi Controller, Web UI, Mobile App |
Dimensions | 442.4 x 285.4 x 43.7 mm |
Weight | 4.3 kg |
Frequently Asked Questions (FAQ)
1. Can this switch be used for Layer 3 routing?
Yes, it supports static and inter-VLAN routing via UniFi Network Controller.
2. Does it support PoE++ on all ports?
No, only 8 ports support 802.3bt PoE++, while 16 support PoE+.
3. Can I use this switch without a UniFi controller?
It’s possible for basic switching, but full configuration and monitoring require UniFi Controller.
4. Is the switch silent?
Yes, the fanless design makes it completely silent.
5. What’s the power supply input type?
It uses a standard AC input with an internal PSU.
6. Is this switch compatible with UniFi Dream Machine Pro?
Yes, it integrates seamlessly with all UniFi consoles and controllers.
7. Can I stack multiple switches together?
While Ubiquiti does not support physical stacking, multiple switches can be managed centrally.
8. What is the maximum PoE per port?
Up to 60W on PoE++ ports and 30W on PoE+.
9. Is SNMP supported?
Yes, SNMP v1, v2c, and v3 are supported via the UniFi Controller.
10. Can it be mounted on a wall?
It’s primarily designed for rack mounting, but can be wall-mounted with appropriate brackets.
Conclusion
The Ubiquiti USW-Pro-24-PoE Switch is a powerful, professional-grade network switch that blends efficient power delivery, silent operation, and high-performance switching. Ideal for mid-sized networks looking to unify data and power infrastructure, it offers future-proof 10G uplinks, intelligent PoE prioritization, and full Layer 3 functionality—all managed through the intuitive UniFi Controller. Whether you’re upgrading an old network or deploying new infrastructure, this switch offers excellent value and performance.
