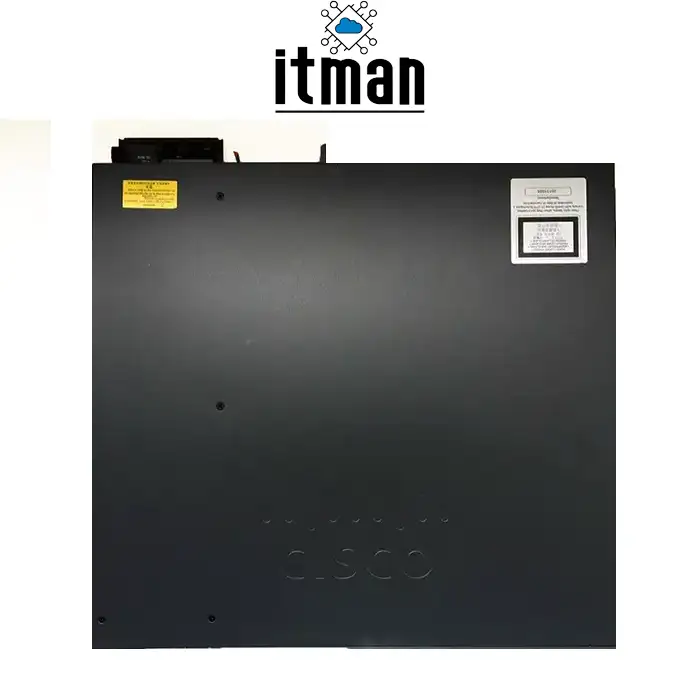

WS-C2960XR-48TS-I Cisco Network Switch

The Cisco WS-C2960XR-48TS-I is a highly reliable Layer 2 access switch designed to support modern enterprise networks that demand stability, energy efficiency, easy manageability, and robust performance. For many organizations, the access layer of the network is where connectivity must remain uninterrupted, predictable, and scalable. The WS-C2960XR-48TS-I was engineered to meet these requirements, offering a balance between advanced software features and the simplicity that administrators expect from Cisco’s renowned Catalyst 2960-XR series. Whether deployed in corporate offices, branch networks, education campuses, or commercial environments, this Cisco switch delivers long-term operational confidence and efficient network control.

The deeper value of the WS-C2960XR-48TS-I lies in its architecture and smart feature set. Cisco built this model around high-performance hardware, modular uplinks, and a resilient operating system that helps organizations maintain consistent performance even during growth or reconfiguration. The WS-C2960XR-48TS-I is part of the popular 2960XR family, which is known for offering stackability, high energy efficiency, and optional redundant power supplies.

This switch provides 48 Gigabit Ethernet downlink ports and supports Layer 3 Lite routing features. It is ideal for enterprises that want to streamline network management, reduce downtime, and invest in equipment that scales with their operational demands. At ITMan, this switch is a frequently chosen option because it balances price, performance, and reliability for both medium and large-scale IT infrastructures.

Comprehensive Introduction to the WS-C2960XR-48TS-I

The WS-C2960XR-48TS-I features Cisco’s StackWise-160 technology, allowing up to eight switches to operate as a single logical unit. This dramatically simplifies network administration by enabling centralized configuration, unified software upgrades, and redundancy that protects users from unnecessary downtime. The switch is built using Cisco’s EnergyWise technology, helping optimize energy usage across your infrastructure while delivering lower total cost of ownership. It supports dynamic power management, which allows organizations to reduce electricity consumption without impacting device performance.

Administrators benefit from advanced security mechanisms such as Cisco TrustSec, hardware-based MACsec encryption (licensing required), flexible authentication, and granular policy control. These capabilities make the WS-C2960XR-48TS-I a solid option for environments that need strong endpoint security and compliance. The switch also supports optional Dual Redundant Power Supply (with external module) to create higher resilience for mission-critical networks. The Cisco IOS feature set included with the WS-C2960XR-48TS-I offers Layer 3 routing such as static routing and RIP, delivering a hybrid solution between a pure Layer 2 switch and a more advanced routing platform.

Applications of the WS-C2960XR-48TS-I

The WS-C2960XR-48TS-I is widely used across enterprise access layers where high-density user connectivity and strong network control are essential. In office environments, it serves as the primary switch connecting PCs, phones, printers, access points, and security devices. In schools and universities, its stability and easy VLAN segmentation make it ideal for separating administrative, student, and public networks.

Data-intensive environments like call centers benefit from its low latency and predictable packet handling. Branch offices choose it for its ability to deliver reliable Layer 2 and basic Layer 3 functionality while keeping maintenance simple. For customers of ITMan, the WS-C2960XR-48TS-I remains a highly attractive option for any scenario that requires a large number of Gigabit Ethernet ports without the need for PoE.

Ports and Connectivity on the WS-C2960XR-48TS-I

The switch includes 48 Gigabit Ethernet downlink ports, making it suitable for dense user environments where many wired endpoints must be connected simultaneously. For uplinks, the WS-C2960XR-48TS-I provides four SFP (1G) uplink interfaces, allowing connections to distribution switches, core networks, or fiber uplinks across floors or buildings. These SFP uplinks provide flexibility to use multi-mode or single-mode fiber depending on the deployment distance. The combination of high-density downlink ports and reliable uplinks allows administrators to create efficient access layers with proper bandwidth distribution. The ports support auto-negotiation, auto MDI/MDI-X, and comprehensive Quality of Service configurations for prioritizing business-critical traffic.

How to Optimize Network Segmentation with the WS-C2960XR-48TS-I

Proper VLAN design can dramatically increase network performance and security. The WS-C2960XR-48TS-I offers robust VLAN capabilities that help segment departments, services, and security zones. Administrators can assign VLANs for users, VoIP traffic, IoT devices, and management interfaces. Using the switch’s flexible ACL and QoS features, organizations can ensure voice traffic maintains high priority, sensitive data stays isolated, and guest networks remain securely separated. With Layer 3 Lite routing, inter-VLAN communication can be handled directly on the WS-C2960XR-48TS-I for smaller networks.

Building Redundant Access Infrastructure with StackWise-160

If network uptime is a priority, using the WS-C2960XR-48TS-I in a stacked configuration is ideal. StackWise-160 provides a combined bandwidth of 160 Gbps across the stack, allowing smooth failover between units. When one switch in the stack fails, traffic automatically reroutes with minimal downtime. IT teams can add switches to the stack as the network grows without requiring major configuration changes. This improves scalability and reduces operational complexity, especially in distributed corporate offices or high-density enterprise environments.

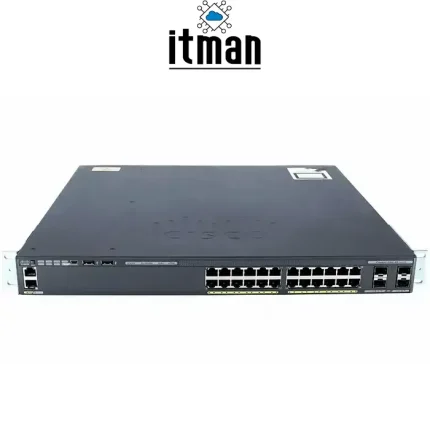

Comparison with Similar Cisco Models

Technical Specifications Table

Frequently Asked Questions about WS-C2960XR-48TS-I

1. Does the WS-C2960XR-48TS-I support PoE?
   No, it is a non-PoE switch designed for data-only environments.
2. Can this switch be stacked?
   Yes, the WS-C2960XR-48TS-I supports StackWise-160.
3. Does it support Layer 3 routing?
   Yes, it supports Layer 3 Lite with static routing and RIP.
4. What type of uplinks does it include?
   It includes four 1G SFP uplinks.
5. Is it suitable for corporate access layers?
   Yes, it is widely used in enterprise access deployments.

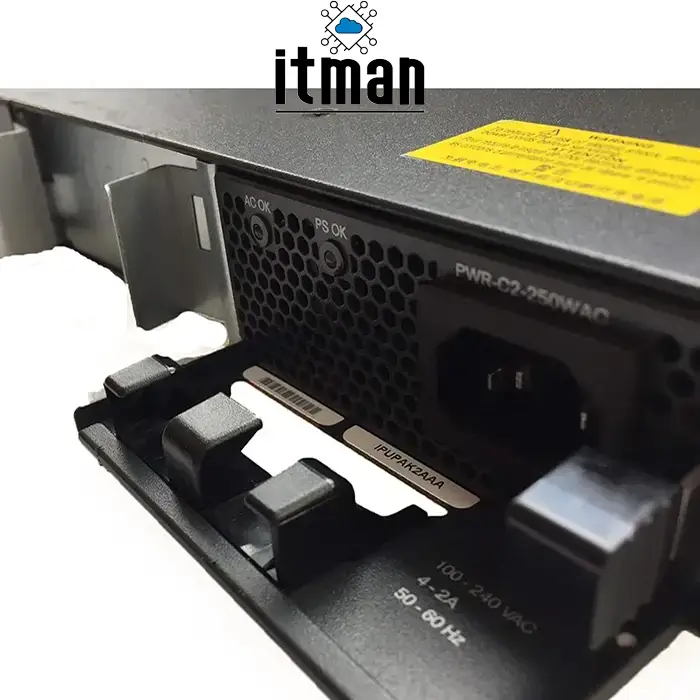

6. Can it operate with redundant power?
   Yes, with the optional PWR-C2 external module.
7. Does it support VLAN segmentation?
   Yes, it supports extensive VLAN features.
8. Can it be used in data centers?
   It is better suited for access layers rather than core or data center roles.
9. Does it support MACsec?
   It supports MACsec in hardware but may require additional licensing.
10. How does it compare with PoE models?
    It is more cost-effective but lacks PoE capabilities found in LPS or FPD models.

Conclusion

The Cisco WS-C2960XR-48TS-I is a highly dependable enterprise-grade access switch suited for organizations that need strong performance without PoE requirements. With stacking capability, energy efficiency, solid security features, and a reliable hardware base, the WS-C2960XR-48TS-I remains a long-lasting solution for expanding networks. ITMan recommends this switch for businesses looking for performance, scalability, and a high-value investment in their network infrastructure. Its balanced design and powerful software features make it an excellent choice for medium and large enterprise deployments.
