In the world of outdoor wireless networking, finding a device that offers reliable connectivity, rugged build, and flexible power options can be a challenge. The MikroTik OmniTIK 5 PoE ac Access point stands out as a robust solution for outdoor deployments where performance and durability go hand in hand. With integrated 5GHz dual-chain wireless, five Ethernet ports, and support for PoE out, this MikroTik access point empowers network administrators to build scalable, centralized outdoor wireless infrastructures with ease.
Full Product Overview: What Makes the OmniTIK 5 PoE ac Unique?
The MikroTik OmniTIK 5 PoE ac Access point is a weatherproof dual-chain outdoor access point with powerful 802.11ac support. It features a built-in 7.5 dBi 5GHz omni-directional antenna, perfect for point-to-multipoint setups in enterprise, industrial, or remote environments. Its sturdy design and wide operating temperature make it ideal for deployment in the harsh climates of regions like the Middle East or Africa.
Unlike many outdoor APs, the OmniTIK 5 PoE ac includes five Gigabit Ethernet ports, allowing you to extend your wired infrastructure directly from the device. Four of these ports support PoE output, making it possible to power other MikroTik devices such as SXT units or cameras without needing additional power supplies. This kind of flexibility is a game-changer for system integrators and technicians looking for simplified outdoor wireless deployments.
At the core of this device is a 720 MHz CPU with 128 MB of RAM, offering solid throughput and stable performance under high traffic. It supports RouterOS Level 4, which includes routing, bridging, firewall, wireless access point configuration, and much more — offering all the advanced features MikroTik is known for.
Applications: Where the OmniTIK 5 PoE ac Shines
The MikroTik OmniTIK 5 PoE ac Access point is designed for a wide range of outdoor networking use cases:
- Point-to-multipoint distribution: Ideal as a central AP for connecting multiple client stations in a wireless ISP setup or corporate campus.
- Remote camera deployment: Use PoE-out to power surveillance cameras in parking lots or large outdoor venues.
- Outdoor WiFi expansion: Extend high-speed wireless coverage to courtyards, construction sites, or outdoor event spaces.
- IoT and industrial networks: Its weatherproof casing and PoE support make it perfect for controlling IoT devices or sensors in rugged conditions.

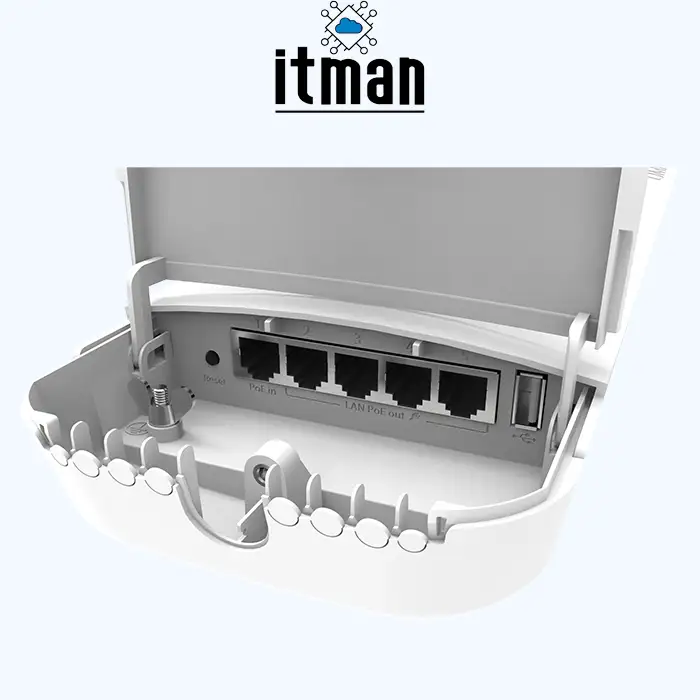

Port Configuration and Connectivity
The OmniTIK 5 PoE ac (RBOmniTikPG-5HacD) comes equipped with:
- 5 x 10/100/1000 Mbps Ethernet ports
- 4 x Passive PoE-out capable ports
- 1 x Gigabit SFP port (for fiber uplink)
This port configuration allows for both wired expansion and uplink flexibility. You can use the PoE-out ports to power MikroTik devices like the SXT Lite5, creating cost-effective point-to-point or mesh-style topologies. Additionally, the SFP port enables long-distance fiber uplinks — a crucial feature for backbone connections in large-scale deployments.
Rugged Design and Build Quality

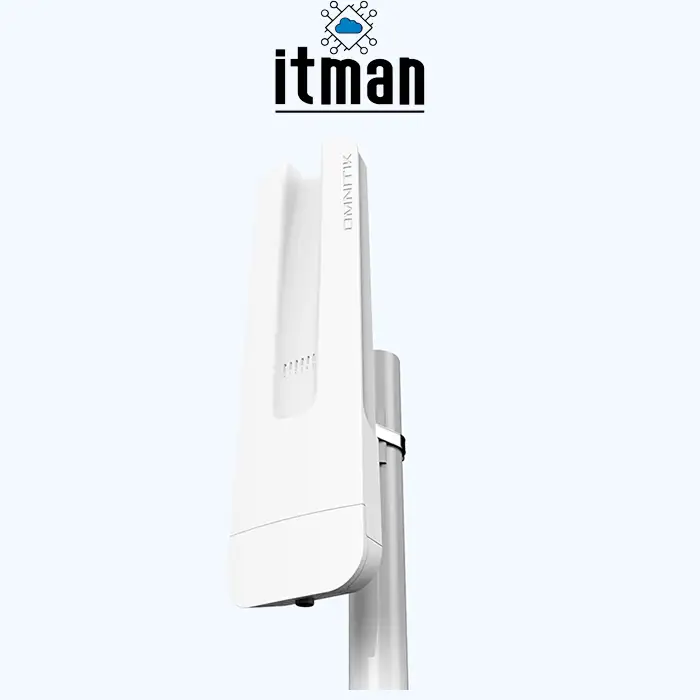

The RBOmniTikPG-5HacD is housed in a weatherproof enclosure, rated for outdoor use even in extreme temperatures ranging from -40°C to +70°C. Its antenna is built-in, eliminating concerns around connector wear or antenna disconnection in harsh weather. Designed with system integrators in mind, the OmniTIK 5 PoE ac also includes a pole mount bracket and cable management system to ensure clean and secure installations.
Its passive cooling design and sealed housing mean no moving parts and no maintenance. This makes it ideal for unattended, long-term installations in remote or hard-to-reach areas.
Wireless Uplink with PoE Camera Integration
Let’s say you want to cover a parking lot with both WiFi and surveillance. You can install the MikroTik OmniTIK 5 PoE ac Access point on a light pole and use its wireless uplink to the core router. Then, connect IP cameras to the Ethernet ports and power them via PoE. With this setup, there’s no need for extra power lines, injectors, or complicated wiring — just one device handling it all.
Cost-Effective Wireless ISP Base Station
If you’re an internet provider servicing a suburban or rural area, OmniTIK 5 PoE ac can act as your main AP. Its omni-directional antenna covers a broad area, and with PoE output you can power up to 4 client stations (e.g., SXT CPEs) directly from the unit. This reduces cost, simplifies installation, and enhances reliability — a win-win for WISPs.
Comparison with Other MikroTik Outdoor Units
Feature | OmniTIK 5 PoE ac | SXT SA5 ac | NetMetal 5SHPÂ | BaseBox 5 |
---|---|---|---|---|
Wireless Standard | 802.11ac | 802.11ac | 802.11ac | 802.11a/n |
Antenna Type | Built-in 7.5 dBi Omni | Sector 14 dBi | External Antenna | External Antenna |
PoE-out Ports | 4 | 0 | 0 | 0 |
Gigabit Ports | 5 | 1 | 1 | 1 |
SFP Port | Yes | No | Yes | No |
Use Case | Base station with PoE | Sector AP | Long range PTP | Modular AP for custom antenna |
Enclosure | Weatherproof | Weatherproof | Heavy-duty aluminum | Weatherproof |
The MikroTik OmniTIK 5 PoE ac Access point strikes the perfect balance between price, performance, and flexibility — especially when multiple PoE-out ports are a must.
Technical Specifications Table
Specification | Detail |
---|---|
Product Code | RBOmniTikPG-5HacD |
Architecture | MIPSBE |
CPU | QCA9557, 720 MHz |
RAM | 128 MB |
Storage | 16 MB Flash |
Ethernet Ports | 5 x Gigabit Ethernet |
SFP Port | 1 x SFP |
Wireless | Dual-chain 5 GHz, 802.11a/n/ac |
Antenna Gain | 7.5 dBi Omni-directional |
Wireless Chipset | QCA9882 |
PoE-in | Passive PoE (18-28V) |
PoE-out | Passive PoE on 4 ports (max 57W total) |
Operating System | MikroTik RouterOS, Level 4 license |
Dimensions | 368 x 125 x 55 mm |
Operating Temp | -40°C to +70°C |
Mounting | Pole mount included |
Frequently Asked Questions (FAQ)
1. Can I use OmniTIK 5 PoE ac as a point-to-point device?
While it’s primarily designed for point-to-multipoint use, it can be used in PTP setups, though directional antennas are typically better for that.
2. Is the device compatible with 24V and 48V PoE-out?
Yes, the RBOmniTikPG-5HacD supports passive PoE-out. You must match the input voltage to get corresponding output voltage.
3. Does it support VLANs and firewall rules?
Yes. With RouterOS Level 4, you get full Layer 3 routing, VLANs, firewalls, NAT, and more.
4. Can I power another OmniTIK from the PoE-out ports?
Technically yes, but it’s more common to power smaller CPEs like SXT or LiteBeam equivalents.
5. Is it compatible with MikroTik’s CAPsMAN?
Yes, you can manage it centrally with CAPsMAN if you configure it as a CAP.
6. What’s the maximum wireless throughput?
The theoretical limit with 802.11ac is around 866 Mbps (single client, best case).
7. Can I use it for 2.4GHz networks?
No, it supports only 5GHz wireless bands.
8. Is there a web interface, or only CLI?
You can configure it via WebFig (GUI), Winbox, or CLI via SSH/Terminal.
9. How far can the PoE-out ports deliver power?
Typically up to 30–50 meters depending on cable quality and powered device.
10. Does the product come with a power adapter?
Yes, a 24V power supply is included in the box.
Final Thoughts: Why MikroTik OmniTIK 5 PoE ac is a Smart Outdoor Choice
If you need a rugged, versatile, and feature-rich outdoor access point, the MikroTik OmniTIK 5 PoE ac Access point is a highly competitive choice — especially for small ISPs, system integrators, or surveillance deployments. Its built-in omnidirectional antenna, five Gigabit ports, and PoE-out functionality offer a unique combination that simplifies your network design and reduces infrastructure cost.
And when reliability matters — whether under the burning sun of Dubai or the cold nights of Eastern Europe — this device is made to endure.
