? Message us on The Cisco CBS110-5T-D Switch is a compact, reliable, and cost-effective networking solution designed for small businesses, home offices, and workspaces that require stable Gigabit Ethernet connectivity. As part of the Cisco Business 110 Series, this unmanaged network switch provides a simple way to expand wired network connections without complicated configuration or ongoing administration. Featuring five Gigabit Ethernet ports, plug-and-play functionality, and an energy-efficient design, this Cisco Switch is ideal for connecting computers, printers, network storage devices, and other Ethernet-enabled equipment. Its combination of Cisco networking reliability, quiet operation, and straightforward installation makes it a practical choice for users seeking dependable everyday network performance.
Cisco CBS110-5T-D 5-Port Gigabit Unmanaged Network Switch
The Cisco CBS110-5T-D 5-Port Gigabit Unmanaged Network Switch is an entry-level networking device engineered to deliver efficient data transmission across small wired networks. Unlike managed switches that require configuration and technical expertise, this model automatically handles Ethernet connectivity, allowing users to establish a functioning network simply by connecting devices and power.
Each of its five RJ-45 ports supports 10/100/1000 Mbps speeds, providing the bandwidth required for everyday business applications, file transfers, internet access, and local network communication. The switch also supports automatic speed negotiation, automatic MDI/MDIX detection, and standard Ethernet switching technologies to improve compatibility with different network devices. Available from ITMan in Dubai, the Cisco CBS110-5T-D Switch offers businesses an accessible way to expand their network infrastructure using trusted Cisco hardware.
Compact Design, Dimensions, and Build Quality
The Cisco CBS110-5T-D Switch features a space-saving desktop design suitable for environments where equipment space is limited. Its compact enclosure fits comfortably on office desks, shelves, and small networking workstations.
The switch measures approximately 110 × 75 × 30 mm, making it easy to integrate into existing office setups without requiring a dedicated networking cabinet.
Its durable enclosure is designed for everyday operation, while the fanless cooling system eliminates mechanical fan noise. This silent design makes the Cisco CBS110-5T-D Switch particularly suitable for offices, reception areas, and home workspaces.
Front-facing Ethernet ports and status indicators provide convenient access for connecting cables and monitoring network activity.
Applications of the Cisco CBS110-5T-D Switch
The Cisco CBS110-5T-D Switch is designed for small business networks that require reliable wired connectivity without advanced management features.
In offices, it can connect desktop computers, network printers, and other Ethernet devices to a shared network. Home users can also use it to expand the available Ethernet connections on an existing router.
The switch is suitable for connecting network-attached storage devices, smart televisions, gaming consoles, and compatible IP cameras.
For small businesses in Dubai and across the UAE, the Cisco CBS110-5T-D Switch offers a convenient networking solution that requires minimal installation time and maintenance.
Ethernet Ports and Network Connectivity
The Cisco CBS110-5T-D Switch includes five 10/100/1000 Mbps RJ-45 Ethernet ports, allowing multiple wired devices to communicate through a single network connection.
All five ports support automatic speed negotiation, enabling the switch to detect the appropriate connection speed for each device.
Auto MDI/MDIX functionality eliminates the need for special crossover Ethernet cables, simplifying installation and improving compatibility.
The switch also supports full-duplex Gigabit Ethernet communication, helping devices send and receive data efficiently.
Because this is an unmanaged switch, its ports operate automatically without VLAN configuration, command-line management, or additional networking software.
Plug-and-Play Installation and Easy Network Expansion
One of the main advantages of the Cisco CBS110-5T-D Switch is its effortless installation process.
Users simply connect the supplied power adapter, attach an Ethernet cable from their router or existing network, and connect additional wired devices to the remaining ports.
The switch automatically recognizes connected equipment and begins forwarding network traffic without manual configuration.
This functionality makes it especially useful for small businesses without dedicated IT administrators.
The Cisco CBS110-5T-D Switch can also serve as a simple expansion device when an existing router has insufficient Ethernet ports.
Energy Efficiency and Silent Operation
The Cisco CBS110-5T-D Switch incorporates energy-efficient Ethernet technologies designed to reduce unnecessary power consumption during normal network operation.
Its support for IEEE 802.3az Energy Efficient Ethernet helps optimize power usage when network traffic is low, provided connected equipment supports compatible functionality.
The fanless design also contributes to low maintenance requirements by eliminating moving cooling components.
For offices that require continuous network availability, this combination of efficient power consumption and silent operation makes the Cisco CBS110-5T-D Switch a practical networking investment.

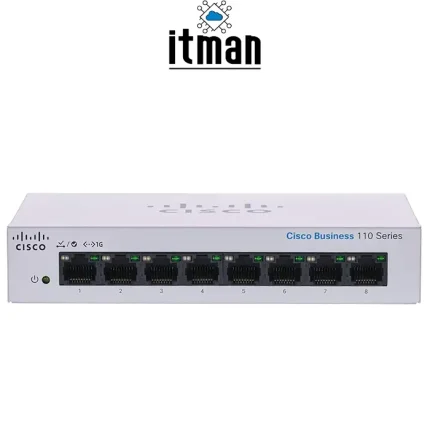

Cisco CBS110-5T-D Switch vs Similar Cisco Switches
Cisco offers several unmanaged Gigabit Ethernet switches for businesses requiring different numbers of ports and connectivity options.
| Feature | CBS110-5T-D | CBS110-8T-D | CBS110-8PP-D |
|---|---|---|---|
| Switch series | Cisco Business 110 | Cisco Business 110 | Cisco Business 110 |
| Ethernet ports | 5 | 8 | 8 |
| Port speed | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps |
| Switch type | Unmanaged | Unmanaged | Unmanaged |
| PoE support | No | No | Yes |
| Plug-and-play | Yes | Yes | Yes |
| Fanless design | Yes | Yes | Yes |
| Auto MDI/MDIX | Yes | Yes | Yes |
| VLAN management | No | No | No |
| Ideal application | Small wired networks | Larger desktop networks | Small PoE networks |
The Cisco CBS110-5T-D Switch is an excellent choice for users who need only a few wired connections. The CBS110-8T-D provides additional ports for network expansion, while the CBS110-8PP-D is better suited to environments requiring PoE connectivity for compatible devices.
Cisco CBS110-5T-D Switch Technical Specifications
| Specification | Details |
|---|---|
| Brand | Cisco |
| Product model | CBS110-5T-D |
| Product series | Cisco Business 110 Series |
| Switch type | Unmanaged |
| Total Ethernet ports | 5 |
| Ethernet interface | RJ-45 |
| Ethernet speed | 10/100/1000 Mbps |
| Switching capacity | 10 Gbps |
| Forwarding rate | 7.4 Mpps |
| MAC address table | 2K addresses |
| Packet buffer | 1 Mbit |
| Jumbo frame support | Up to 9216 bytes |
| Quality of Service | IEEE 802.1p |
| QoS hardware queues | 4 |
| Flow control | IEEE 802.3x |
| Energy Efficient Ethernet | IEEE 802.3az |
| Auto MDI/MDIX | Supported |
| Auto-negotiation | Supported |
| Loop detection | Supported |
| Cable diagnostics | Supported |
| PoE support | No |
| SFP ports | None |
| Cooling system | Fanless |
| Power supply | External adapter |
| Input voltage | 100–240V AC, 50/60Hz |
| Maximum power consumption | 3.1W at 220V |
| Dimensions (W × D × H) | 110 × 100 × 30 mm (revised hardware) |
| Weight | 0.29 kg (revised hardware) |
| Operating temperature | 0°C to 50°C |
| Operating humidity | 10%–90%, non-condensing |
| Installation | Desktop |
| Configuration required | No |
Specifications reflect Cisco’s revised hardware; earlier versions may have different dimensions and weight.
Frequently Asked Questions About Cisco CBS110-5T-D Switch
1. Does the Cisco CBS110-5T-D Switch require configuration?
No. It is an unmanaged switch that operates automatically without requiring manual configuration or management software.
2. Does the Cisco CBS110-5T-D Switch support Gigabit Ethernet?
Yes. All five Ethernet ports support speeds up to 1000 Mbps.
3. Can I connect the Cisco CBS110-5T-D Switch directly to my router?
Yes. Connect one Ethernet port to your router and use the remaining ports for additional wired devices.
4. Does the Cisco CBS110-5T-D Switch support PoE?
No. This model cannot supply Power over Ethernet to connected devices.
5. Is the Cisco CBS110-5T-D Switch suitable for gaming?
Yes. Its Gigabit Ethernet ports provide stable wired connectivity for gaming consoles and desktop computers.
6. Can the Cisco CBS110-5T-D Switch connect IP cameras?
Yes. It supports Ethernet-connected IP cameras, but cameras requiring PoE must receive power from another source.
7. Does the Cisco CBS110-5T-D Switch support VLAN configuration?
No. It does not provide user-configurable VLAN management because it is an unmanaged switch.
8. Can the Cisco CBS110-5T-D Switch operate continuously?
Yes. It is designed for regular network operation, including continuous use within its specified operating conditions.
9. What Ethernet cables should I use?
Cat5e or Cat6 Ethernet cables are recommended for reliable Gigabit Ethernet connectivity.
10. Where can I buy the Cisco CBS110-5T-D Switch in Dubai?
You can purchase the Cisco CBS110-5T-D Switch from ITMan, a networking equipment supplier in Dubai, UAE.
Conclusion
The Cisco CBS110-5T-D Switch is an efficient and dependable networking solution for users who need simple Gigabit Ethernet connectivity without complicated management features. Its five Gigabit ports, 10 Gbps switching capacity, fanless construction, and energy-efficient operation make it suitable for home offices, small businesses, and everyday wired networking applications.
With Cisco’s established networking technology and convenient plug-and-play installation, the Cisco CBS110-5T-D Switch provides an excellent balance of performance, simplicity, and affordability.
