? Message us on The Cisco CBS110-8T-D Switch is a compact, reliable, and energy-efficient networking solution designed for small businesses, home offices, and professional workspaces. Featuring eight Gigabit Ethernet ports, this Cisco switch provides fast and stable wired connectivity without requiring complicated configurations or technical expertise. As part of the Cisco Business 110 Series, it combines essential networking capabilities with dependable performance, making it an excellent choice for organizations looking to expand their existing network infrastructure at an affordable cost.
Cisco CBS110-8T-D 8-Port Gigabit Unmanaged Network Switch
The Cisco CBS110-8T-D 8-Port Gigabit Unmanaged Network Switch delivers professional-grade networking performance in a simple plug-and-play device. Equipped with eight 10/100/1000 Mbps Ethernet ports, a 16 Gbps switching capacity, and an 11.9 Mpps forwarding rate, it efficiently handles everyday business networking requirements. Its non-blocking architecture supports simultaneous communication between connected devices, while integrated Quality of Service (QoS), loop detection, and cable diagnostics improve network reliability. Unlike managed switches, the Cisco CBS110-8T-D Switch operates automatically without requiring software installation, web-based administration, or advanced network configuration. Available from ITMan in Dubai, UAE, this Cisco switch is a practical solution for customers seeking dependable Gigabit connectivity.
Compact Design, Dimensions, and Build Quality
The Cisco CBS110-8T-D Switch features a compact desktop design suitable for environments where installation space is limited. Measuring 160 × 104 × 30 mm and weighing approximately 430 grams, it fits conveniently on office desks, shelves, and network cabinets.
Its durable enclosure provides reliable protection for internal networking components. The fanless cooling design eliminates mechanical fan noise, making the device particularly suitable for quiet offices, meeting rooms, and home workspaces.
LED indicators provide convenient visual monitoring of power and Ethernet connection activity. The switch also supports wall mounting, offering additional installation flexibility.
Applications of the Cisco CBS110-8T-D Switch
The Cisco CBS110-8T-D Switch is designed for networking environments requiring reliable connectivity without advanced management features.
Typical applications include:
- Small business and office networks
- Home offices and remote workstations
- Connecting desktop computers and laptops
- Network printers and shared storage devices
- Wired connections for wireless access points
- IP cameras with independent power supplies
- Expanding available Ethernet connections
- Retail shops and reception areas
For businesses using multiple wired devices, the switch provides an economical way to expand connectivity while maintaining Gigabit Ethernet performance.
Ethernet Ports and Network Connectivity
The Cisco CBS110-8T-D Switch includes eight RJ-45 Gigabit Ethernet ports supporting 10 Mbps, 100 Mbps, and 1000 Mbps connections.
Each port automatically negotiates the appropriate connection speed based on the connected device. Auto-MDI/MDIX functionality eliminates the need for crossover Ethernet cables.
The switch supports full-duplex communication and provides a total switching capacity of 16 Gbps, enabling efficient traffic forwarding across all eight ports.
It also supports Jumbo Frames up to 9216 bytes, which can improve efficiency when transferring large data packets between compatible devices.
The CBS110-8T-D does not include PoE functionality or SFP fiber ports. Devices requiring Power over Ethernet must use an external PoE injector or a compatible PoE switch.
Cisco CBS110-8T-D Switch Performance and Network Reliability
One of the most important advantages of the Cisco CBS110-8T-D Switch is its ability to maintain reliable network performance without manual administration.
The switch supports IEEE 802.1p Quality of Service, utilizing four hardware queues to prioritize eligible network traffic.
Its 8K MAC address table enables efficient forwarding of Ethernet frames, while the 2 Mbit packet buffer helps manage temporary traffic congestion.
Additional capabilities include loop detection, cable diagnostics, and head-of-line blocking prevention.
These built-in features make the Cisco CBS110-8T-D Switch suitable for everyday networking tasks, including file sharing, internet access, business applications, and local network communication.
Energy Efficiency and Easy Installation
The Cisco CBS110-8T-D Switch supports IEEE 802.3az Energy Efficient Ethernet technology, helping reduce electricity consumption during periods of lower network activity.
Maximum system power consumption is approximately 4.33 watts at 220V, making it an economical choice for continuous operation.
Installation requires only three basic steps: connect the external power adapter, attach Ethernet cables, and connect the required network devices.
The switch automatically begins forwarding traffic without requiring IP address configuration, licensing, or management software.
Its combination of low power consumption, silent operation, and straightforward installation makes it particularly convenient for small offices.
Cisco CBS110-8T-D Switch vs Similar Cisco Models
Cisco offers several Business 110 Series switches with different port counts and PoE capabilities.
| Model | Ethernet Ports | Switching Capacity | PoE Support | Best Application |
|---|---|---|---|---|

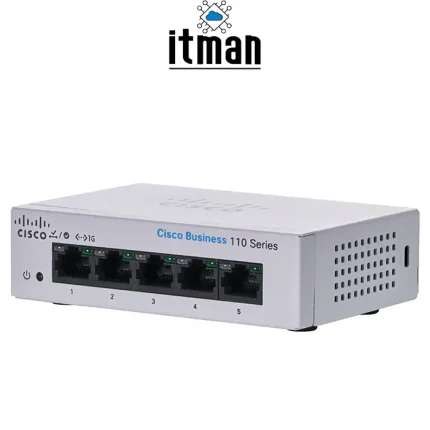

| CBS110-5T-D | 5 Gigabit | 10 Gbps | No | Small home networks |
| CBS110-8T-D | 8 Gigabit | 16 Gbps | No | Small offices |
| CBS110-8PP-D | 8 Gigabit | 16 Gbps | 4 ports, 32W | Small PoE installations |
| CBS110-16T | 16 Gigabit | 32 Gbps | No | Growing office networks |
Compared with the five-port model, the Cisco CBS110-8T-D Switch provides additional connectivity without requiring significantly more installation space.
The CBS110-8PP-D is a better alternative for powering compatible IP cameras and access points, while the CBS110-16T offers greater expansion capacity.
Technical Specifications of Cisco CBS110-8T-D Switch
| Specification | Details |
|---|---|
| Brand | Cisco |
| Product Series | Cisco Business 110 |
| Model | CBS110-8T-D |
| Product Type | Unmanaged Ethernet Switch |
| Total Ports | 8 |
| Ethernet Interface | 8 × RJ-45 |
| Port Speed | 10/100/1000 Mbps |
| Switching Capacity | 16 Gbps |
| Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 2 Mbit |
| Jumbo Frame Support | 9216 Bytes |
| QoS | IEEE 802.1p |
| Hardware Queues | 4 |
| Auto-MDI/MDIX | Supported |
| Loop Detection | Supported |
| Cable Diagnostics | Supported |
| PoE | Not Supported |
| SFP Ports | None |
| Cooling System | Fanless |
| Power Supply | External Adapter |
| Input Voltage | 100–240V AC |
| Maximum Power Consumption | 4.33W at 220V |
| Energy Efficient Ethernet | IEEE 802.3az |
| Dimensions | 160 × 104 × 30 mm |
| Weight | 0.43 kg |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 10%–90%, Non-condensing |
| Installation | Desktop or Wall Mount |
| Management Interface | None |
| Configuration | Plug and Play |
| Manufacturer Warranty | Limited Lifetime, Subject to Terms |
Frequently Asked Questions About Cisco CBS110-8T-D Switch
1. Does the Cisco CBS110-8T-D Switch require configuration?
No. It is an unmanaged switch that operates automatically after connecting power and Ethernet cables.
2. Does the Cisco CBS110-8T-D support PoE?
No. This model does not provide Power over Ethernet.
3. Can I connect the Cisco CBS110-8T-D Switch directly to a router?
Yes. Connect any Ethernet port to your router’s LAN port to expand wired network connectivity.
4. Does this switch support VLAN configuration?
No. The CBS110-8T-D does not provide user-configurable VLAN management.
5. Is the Cisco CBS110-8T-D suitable for gaming?
Yes. Its Gigabit Ethernet connectivity provides a stable wired connection for compatible gaming devices.
6. Can the switch operate continuously?
Yes. It is designed for continuous networking operation when installed within its specified environmental conditions.
7. Does the Cisco CBS110-8T-D require a license?
No. No subscription or software license is required for normal operation.
8. Can I connect network storage devices?
Yes. Compatible NAS devices can connect through its Gigabit Ethernet ports.
9. Is the Cisco CBS110-8T-D Switch noisy?
No. Its fanless design provides silent operation.
10. Can I connect multiple switches together?
Yes. Multiple Ethernet switches can be interconnected to expand a network, provided network loops are avoided.
Conclusion
The Cisco CBS110-8T-D Switch is an excellent networking solution for businesses requiring reliable Gigabit Ethernet connectivity without complex configuration. With eight Gigabit ports, 16 Gbps switching capacity, energy-efficient operation, and a compact fanless design, it delivers the essential features needed for small business office networks.
Whether upgrading an existing network or expanding wired connections, the Cisco CBS110-8T-D 8-Port Gigabit Unmanaged Network Switch offers a practical balance of performance, simplicity, and reliability.
Order the Cisco CBS110-8T-D Switch from ITMan in Dubai and upgrade your business network with dependable Cisco technology.
