As wireless demands increase in both homes and businesses, the need for faster, more reliable, and future-proof access points becomes urgent. Ubiquiti’s UniFi line has long stood as a reliable choice for seamless networking, and the UniFi U7 Pro Max is their latest flagship access point designed for the WiFi 7 generation. With Tri-Band coverage, up to 6.3Gbps wireless throughput, and a 2.5GbE PoE port, this Ubiquiti access point is tailored for environments where performance and stability are non-negotiable.
Whether you’re upgrading your office infrastructure, enhancing smart home capabilities, or supporting high-density deployments like retail floors or classrooms, the UniFi U7 Pro Max provides the foundation for cutting-edge wireless connectivity. With full UniFi ecosystem integration and robust hardware under the hood, this model offers premium performance and control in a compact design.
Ubiquiti UniFi U7 Pro Max – A New Era in WiFi 7 Networking

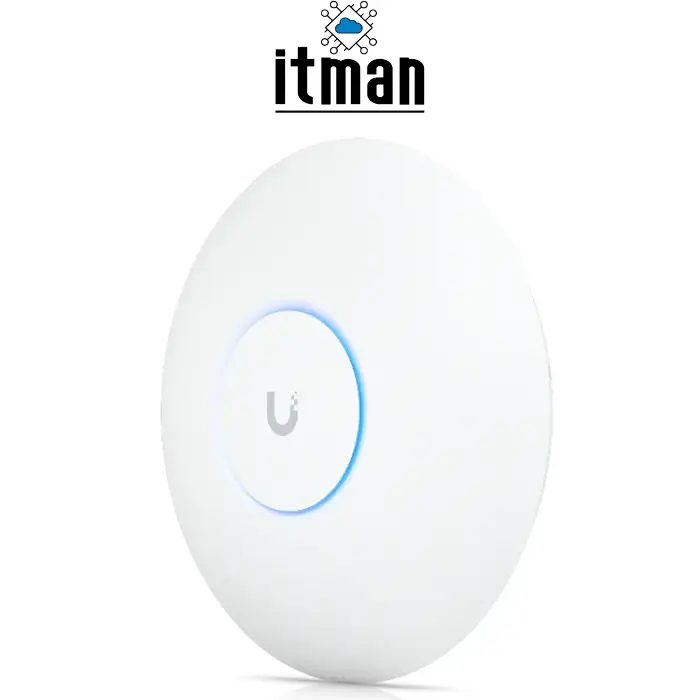

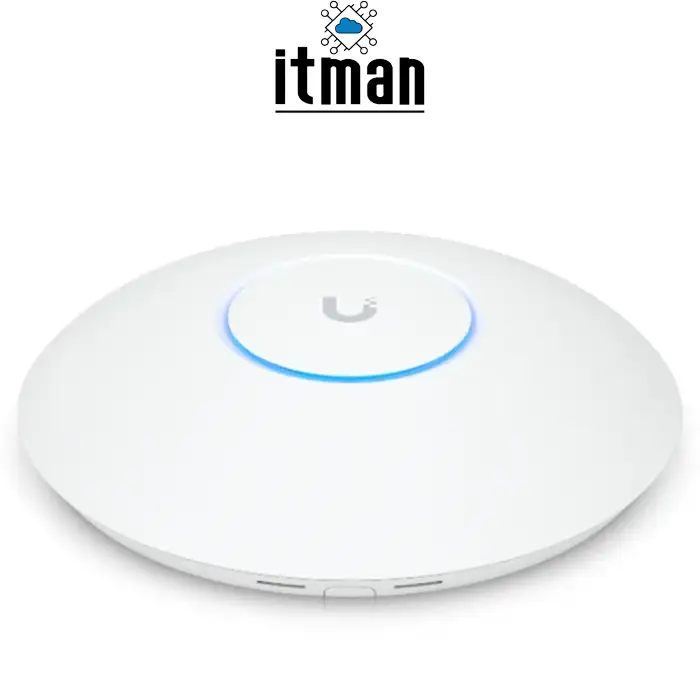

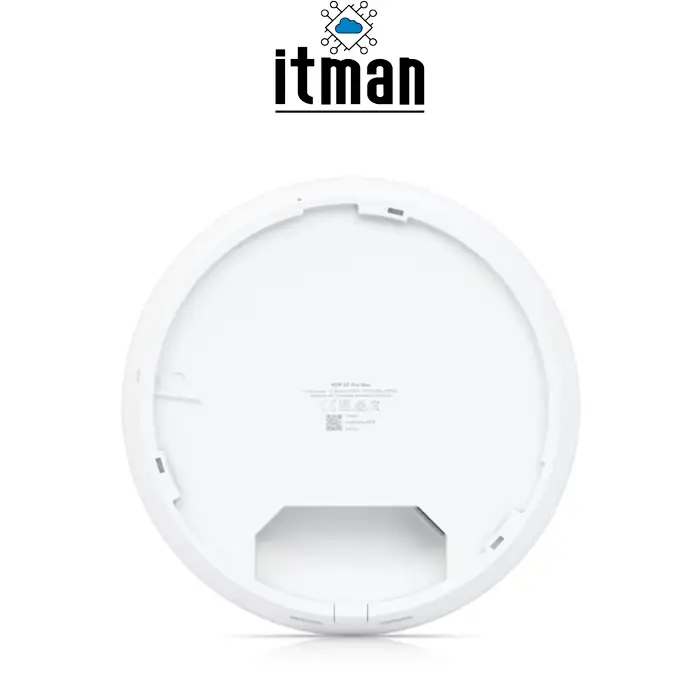

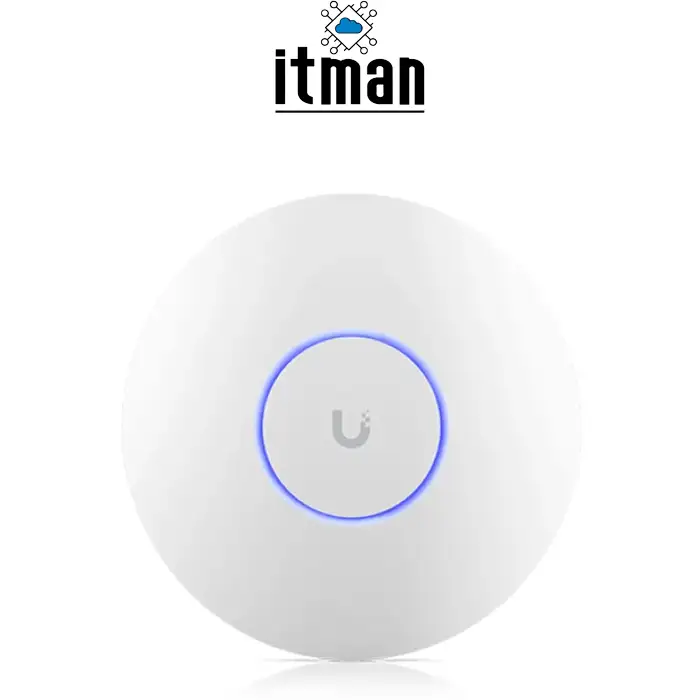

The UniFi U7 Pro Max (part number: U7-Pro-Max) is a next-gen access point engineered for modern wireless ecosystems. It introduces WiFi 7 (IEEE 802.11be) support, enabling faster speeds, reduced latency, and greater capacity compared to its WiFi 6 predecessors. Designed to handle high client density without compromising performance, it’s ideal for smart offices, IoT-heavy environments, and video-streaming households.
The Tri-Band architecture includes one 2.4GHz band and two separate 5GHz and 6GHz bands. This ensures optimal load distribution, reduces interference, and dramatically enhances throughput. The 6GHz band, in particular, brings congestion-free performance for compatible WiFi 7 and WiFi 6E devices.
From a hardware perspective, the UniFi U7 Pro Max features a high-gain internal antenna array for wide coverage, an enterprise-grade chipset, and a sleek, low-profile design that makes it suitable for ceiling or wall mounting. The 2.5GbE Ethernet port supports PoE+, allowing flexible installation without needing additional power cables.
On the software side, it integrates seamlessly with the UniFi Network Controller, giving admins a centralized dashboard to monitor traffic, create VLANs, configure SSIDs, set up guest access, and apply network policies with just a few clicks. You can manage hundreds of access points from a single interface.
Practical Use Cases of the UniFi U7 Pro Max
The UniFi U7 Pro Max is designed for both enterprise and advanced residential use. In business environments, it shines in:
- Modern offices with high concurrent device connections
- University campuses and lecture halls
- Retail stores and shopping centers requiring guest WiFi
- Event venues or conference centers needing stable high-density coverage
- Smart homes running dozens of IoT devices, 4K streaming, and remote work
Thanks to WiFi 7’s support for 320 MHz channels and Multi-Link Operation (MLO), the U7 Pro Max can deliver ultra-low latency and handle simultaneous streams from multiple devices without congestion.
Port and Connectivity Options
The UniFi U7 Pro Max keeps things simple and powerful. It features:
- 1 x 2.5 Gigabit Ethernet port (PoE+): This port supports 802.3at PoE+ for both data and power, streamlining installation and cabling.
- No USB or secondary Ethernet ports, making the device streamlined and optimized for high-performance wireless rather than complex wired expansion.
The use of 2.5GbE ensures that the device’s backhaul is not a bottleneck, allowing it to fully utilize the bandwidth potential of its Tri-Band WiFi 7 radios.
How WiFi 7 Improves Your Network Performance
WiFi 7 is the evolution of wireless networking, and the UniFi U7 Pro Max takes full advantage of its capabilities:
320 MHz Channel Width: Double the bandwidth of WiFi 6, enabling higher data rates.
Multi-Link Operation (MLO): Devices can send and receive data over multiple bands simultaneously.
4096-QAM Modulation: Delivers up to 20% more throughput than WiFi 6.
Improved Latency and Interference Handling: Better performance in environments with lots of nearby networks.
Whether you’re streaming 8K content, participating in real-time VR, or managing dozens of connected devices, these enhancements translate to smoother, faster experiences.
Seamless Integration with UniFi Ecosystem
One of the biggest strengths of the UniFi U7 Pro Max is its place within the larger UniFi ecosystem. It can be easily managed via:
UniFi Network Controller (on-premises or cloud)
UniFi Mobile App (iOS/Android)
Remote monitoring via UniFi Cloud Gateway
You get full access to performance metrics, client statistics, channel utilization, and firmware upgrades. This centralized management makes it easy to scale your network across multiple sites.
Comparison with Other Ubiquiti Models
Let’s compare the UniFi U7 Pro Max to other top UniFi access points:
| Feature | U7 Pro Max | U6 Enterprise | U6 Pro | U7 Pro |
|---|---|---|---|---|
| WiFi Standard | WiFi 7 (802.11be) | WiFi 6E (802.11ax) | WiFi 6 (802.11ax) | WiFi 7 (802.11be) |
| Frequency Bands | 2.4GHz / 5GHz / 6GHz | 2.4GHz / 5GHz / 6GHz | 2.4GHz / 5GHz | 2.4GHz / 5GHz / 6GHz |
| Max Speed | 6.3 Gbps | 10.2 Gbps | 5.3 Gbps | 5.7 Gbps |
| Ethernet Port | 2.5GbE PoE+ | 2.5GbE PoE+ | 1GbE PoE+ | 1GbE PoE+ |
| Mounting | Wall/Ceiling | Wall/Ceiling | Wall/Ceiling | Wall/Ceiling |
| Controller Required | Yes | Yes | Yes | Yes |
| Best For | High-Density Sites | Ultra-High Performance | SMBs & Homes | Balanced WiFi 7 |
The UniFi U7 Pro Max stands out for offering the newest WiFi 7 features at a balanced price-performance point.
Ideal for High-Performance Environments
Deploying UniFi U7 Pro Max access points is a great fit for organizations looking to:
- Future-proof their wireless infrastructure
- Minimize latency for video calls and real-time applications
- Provide seamless handoff between multiple APs in large spaces
- Reduce channel interference in congested areas
Its ability to maintain high throughput under pressure makes it suitable for even the most demanding use cases.
Things to Know Before Installing
If you plan to use the U7 Pro Max, keep in mind:
- You need a PoE+ switch or injector (802.3at) to power it.
- WiFi 7 features work best with WiFi 7-compatible clients.
- Optimal performance is achieved when deployed in environments with proper channel planning and signal separation between bands.
It does not include an Ethernet passthrough or secondary port, so wired expansion is limited.
Technical Specifications Table
| Specification | Details |
|---|---|
| Model | UniFi U7 Pro Max (U7-Pro-Max) |
| Wireless Standard | WiFi 7 (802.11be) |
| Frequency Bands | 2.4GHz, 5GHz, 6GHz |
| Max Throughput | 6.3 Gbps |
| MIMO | 2×2 (2.4GHz), 4×4 (5GHz & 6GHz) |
| Ethernet Port | 1x 2.5GbE (PoE+, 802.3at) |
| Power Method | PoE+ (Only) |
| Max Power Consumption | 18.5W |
| Mounting Options | Ceiling, Wall |
| Dimensions | 160 x 160 x 35 mm |
| Weight | 460g |
| Operating Temperature | -10 to 60°C |
| Management | UniFi Network Controller |
Frequently Asked Questions (FAQ)
1. Does UniFi U7 Pro Max support WiFi 6 devices?
Yes, it is fully backward-compatible with WiFi 6, 5, and older standards.
2. What is the main difference between U7 Pro Max and U6 Pro?
The U7 Pro Max supports WiFi 7, Tri-Band operation, and a 2.5GbE port, offering better speed and future-proofing.
3. Can I power the U7 Pro Max with a regular PoE switch?
Only if it supports PoE+ (802.3at). Standard PoE (802.3af) is not sufficient.
4. How many devices can the UniFi U7 Pro Max handle?
It’s optimized for high-density deployments and can handle over 300 clients depending on usage patterns.
5. Is this access point good for gaming?
Yes, thanks to WiFi 7’s low latency and high throughput, it’s excellent for gaming and VR.
6. Can it be installed outdoors?
No, the U7 Pro Max is designed for indoor use only.
7. Does it come with a PoE injector?
No, it is sold separately.
8. Can I manage it using the UniFi mobile app?
Yes, it is fully compatible with the UniFi mobile app for setup and management.
9. Is the 2.5GbE port auto-negotiating?
Yes, it supports auto-negotiation for backward compatibility.
10. Is this model supported in cloud environments?
Yes, you can manage it via UniFi Cloud Portal or a UniFi Cloud Gateway.
Final Thoughts
The UniFi U7 Pro Max is a powerful, forward-looking access point that brings the advantages of WiFi 7 to both enterprises and power users. Its Tri-Band capability, 6.3Gbps performance, and integration with the UniFi platform make it an excellent choice for those seeking reliability, flexibility, and top-tier performance.
For those who demand the best in wireless networking, the U7 Pro Max delivers outstanding value with cutting-edge specs that ensure long-term relevance. Available now on ITMan.ae, it’s ready to take your network to the next level.
